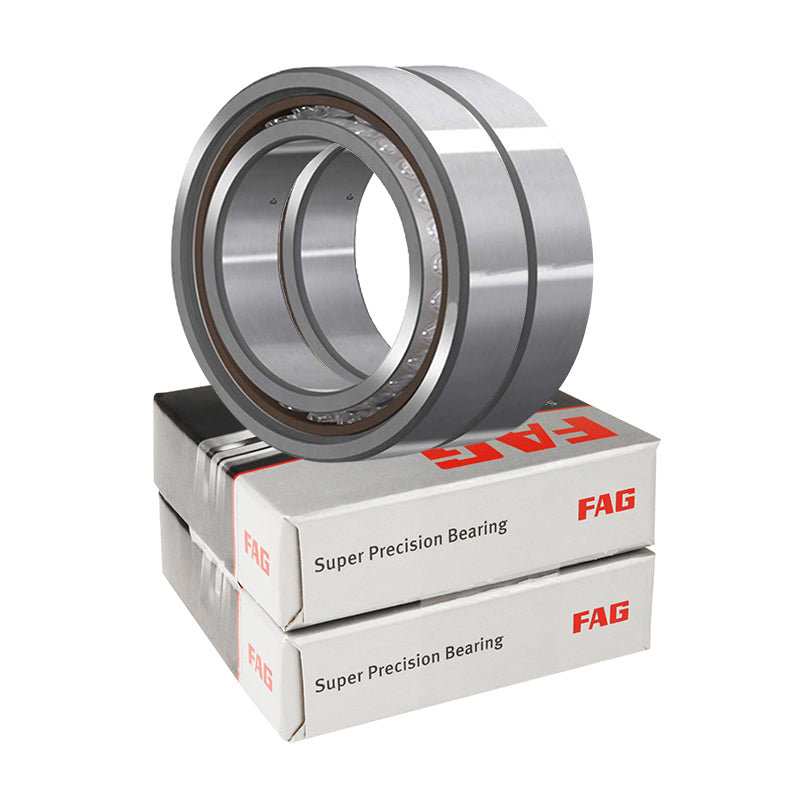

FAG B709CTP4SDUL Super Precision Angular Contact Spindle Bearing 9x24x7mm (Set of 2)

Name: FAG B709CTP4SDUL Super Precision Angular Contact Spindle Bearing 9x24x7mm (Set of 2)
Brand: FAG
SKU: B709-C-T-P4S-DUL-FAG
Price: 297.55 USD
Availability: InStock

$297.55 ex VAT

Sale Sold out

In stock

Price Break

3+ $199.31

5+ $188.11

10+ $185.87

25+ $183.63

49+ $181.39

74+ $179.15

99+ $167.96

199+ $165.72

249+ $163.48

499+ $161.24

999+ $156.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 9mm
Outside Diameter:: 24mm
Width:: 7mm
Seals / Shields:: None
Style:: Universal Matched Pair of Bearings
Contact Angle:: 15 Degree contact angle
Bearing Preload:: Light preload

Technical

---	Bearing dimensions
d	9mm
D	24mm
B	7mm
r<sub>s min</sub>	0.3mm
r<sub>1s min</sub>	0.3mm
---	Abutment dimensions
da<sub> min</sub>	12 mm
Da<sub> min</sub>	21mm
ra<sub> max</sub>	0.3mm
rb<sub> max</sub>	0.1mm
---	Speeds, weights and loads
E<sub>tk nominal</sub>	15.3 kN
C <sub>dynamic</sub>	5.2 kN
C<sub>o static</sub>	2.4 kN
Speed in grease	67000 rpm
Speed in oil	100000 rpm
Preloading force F<sub>v</sub> L	23 N
Preloading force F<sub>v</sub> M	85 N
Preloading force F<sub>v</sub> H	181 N
Unloading force K<sub>aE</sub> L	72 N
Unloading force K<sub>aE</sub> M	293 N
Unloading force K<sub>aE</sub> H	676 N
Axial rigidity C<sub>a</sub> L	14.4 N/μm
Axial rigidity C<sub>a</sub> M	26.5 N/μm
Axial rigidity C<sub>a</sub> H	39.6 N/μm
Weight	0.015kg
