SKU: B7212-E-T-P4S-DUL-FAG

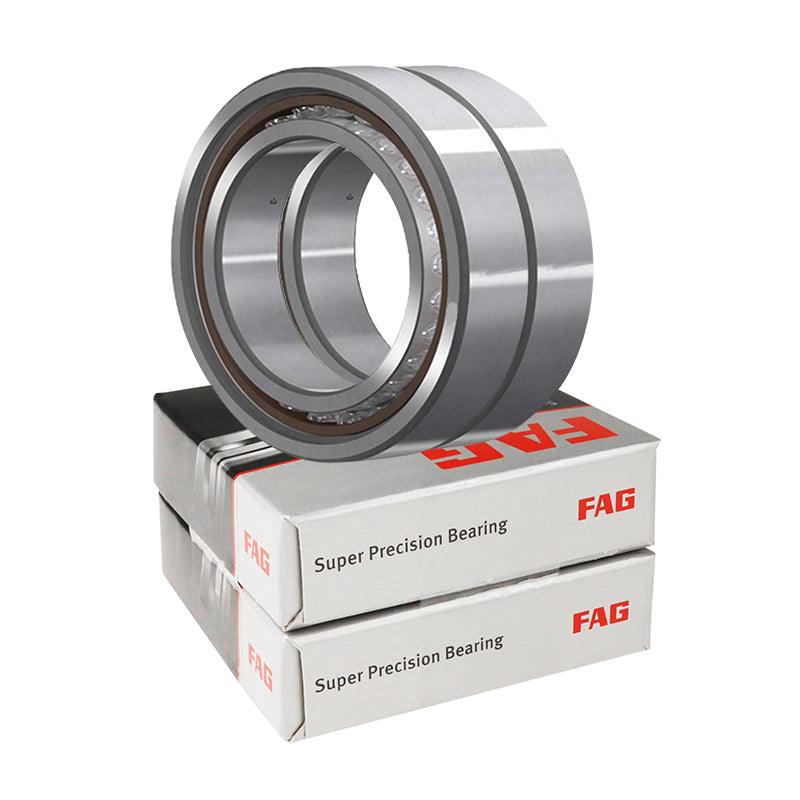

FAG B7212ETP4SDUL Super Precision Angular Contact Spindle Bearing 60x110x22mm (Set of 2)

Name: FAG B7212ETP4SDUL Super Precision Angular Contact Spindle Bearing 60x110x22mm (Set of 2)
Brand: FAG
SKU: B7212-E-T-P4S-DUL-FAG
Price: 824.91 USD
Availability: InStock

$824.91 ex VAT

Sale Sold out

In stock

Price Break

3+ $552.55

5+ $521.51

10+ $515.30

25+ $509.09

49+ $502.88

74+ $496.67

99+ $465.63

199+ $459.42

249+ $453.21

499+ $447.00

999+ $434.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 60mm
Outside Diameter:: 110mm
Width:: 22mm
Seals / Shields:: None
Style:: Universal Matched Pair of Bearings
Contact Angle:: 40 Degree contact angle
Bearing Preload:: Light preload

Technical

---	Bearing dimensions
d	60mm
D	110mm
B	22mm
r<sub>s min</sub>	1.5mm
r<sub>1s min</sub>	1.5mm
---	Abutment dimensions
da<sub> min</sub>	69.5 mm
Da<sub> min</sub>	101.5mm
ra<sub> max</sub>	1.5mm
rb<sub> max</sub>	1.5mm
---	Speeds, weights and loads
E<sub>tk nominal</sub>	81.2 kN
C <sub>dynamic</sub>	52 kN
C<sub>o static</sub>	42.5 kN
Speed in grease	12000 rpm
Speed in oil	19000 rpm
Preloading force F<sub>v</sub> L	467 N
Preloading force F<sub>v</sub> M	1599 N
Preloading force F<sub>v</sub> H	3333 N
Unloading force K<sub>aE</sub> L	1374 N
Unloading force K<sub>aE</sub> M	4877 N
Unloading force K<sub>aE</sub> H	10509 N
Axial rigidity C<sub>a</sub> L	165.9 N/μm
Axial rigidity C<sub>a</sub> M	265.8 N/μm
Axial rigidity C<sub>a</sub> H	360.8 N/μm
Weight	0.8kg
