SKU: BB-6002-B180-10-ES

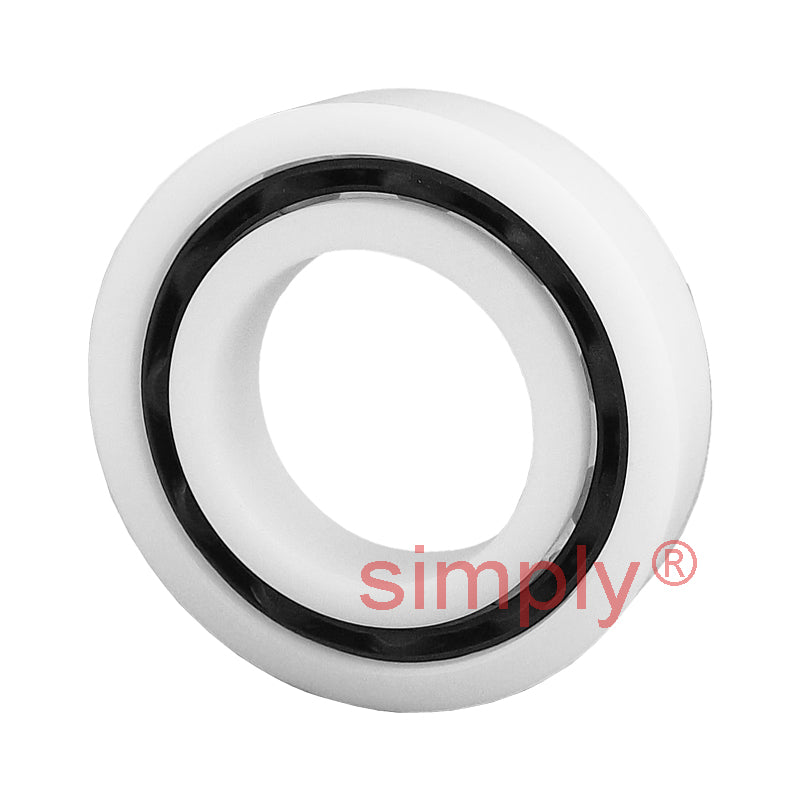

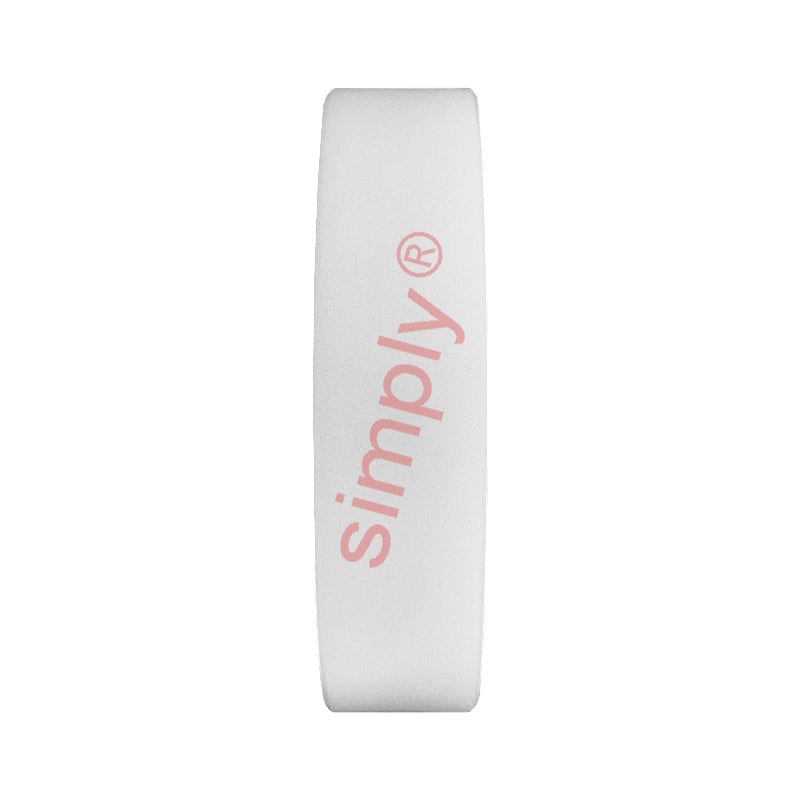

xiros xirodur BB6002B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 15x32x9mm
- Regular price
- $15.79 ex VAT
- Sale price
- $15.79
- Regular price
-
In stock
Quantity Price Breaks
5
$14.05
9
$13.26
29
$13.11
49
$12.95
99
$12.79
199
$12.63
299
$11.84
399
$11.68
499
$11.53
749
$11.37
999
$11.05
SKU:
BB-6002-B180-10-ES
xiros xirodur BB6002B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 15x32x9mm
- Regular price
- $15.79 ex VAT
- Sale price
- $15.79
- Regular price
-
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
Technical
| d1 | = | 15mm |
| d2 | = | 32mm |
| b1 | = | 9mm |
| Max static load capacity | = | 338 N |
| Static load capacity | = | 146 N |
| Dynamic load capacity | = | 196 N |
| Max speed | = | 1600 rpm |
| Race | = | B180 |
| Cage | = | PA |
| Ball material | = | Stainless Steel |
Downloads
