SKU: BB-6003-B180-10-ES

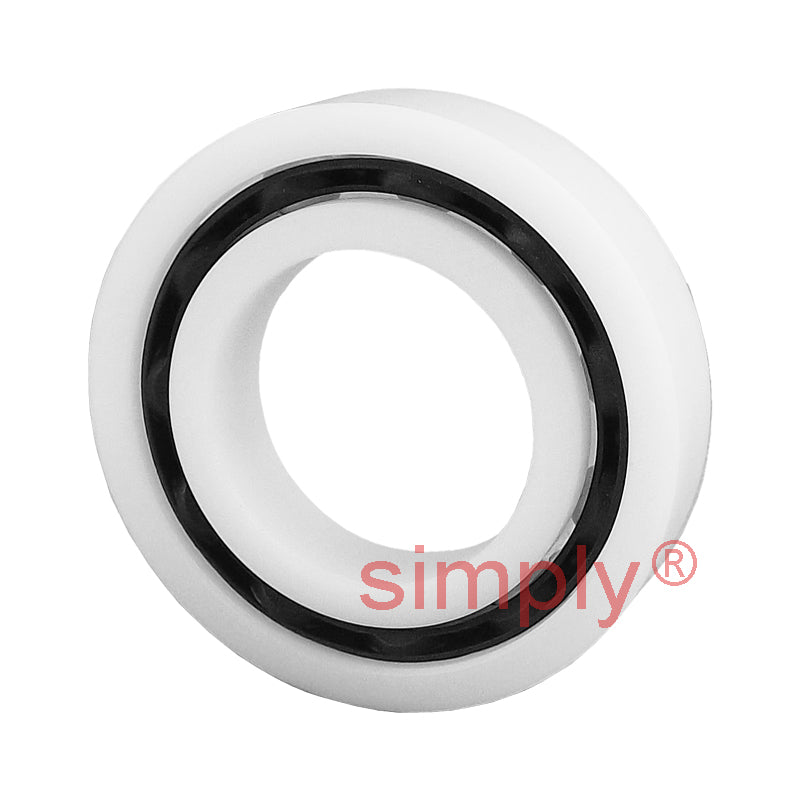

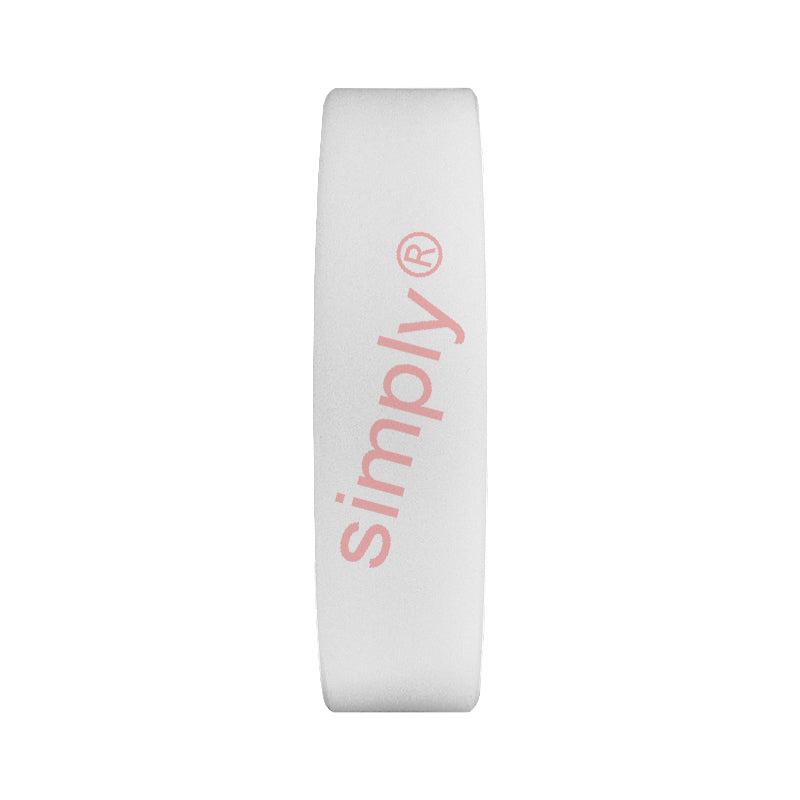

xiros xirodur BB6003B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 17x35x10mm
- Regular price
- $17.24 ex VAT
- Sale price
- $17.24
- Regular price
-
In stock
Quantity Price Breaks
5
$15.34
9
$14.48
29
$14.31
49
$14.14
99
$13.96
199
$13.79
299
$12.93
399
$12.76
499
$12.59
749
$12.41
999
$12.07
SKU:
BB-6003-B180-10-ES
xiros xirodur BB6003B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 17x35x10mm
- Regular price
- $17.24 ex VAT
- Sale price
- $17.24
- Regular price
-
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
Technical
| d1 | = | 17mm |
| d2 | = | 35mm |
| b1 | = | 10mm |
| Max static load capacity | = | 360 N |
| Static load capacity | = | 180 N |
| Dynamic load capacity | = | 250 N |
| Max speed | = | 1400 rpm |
| Race | = | B180 |
| Cage | = | PA |
| Ball material | = | Stainless Steel |
