SKU: BB-6003-B180-30-GL

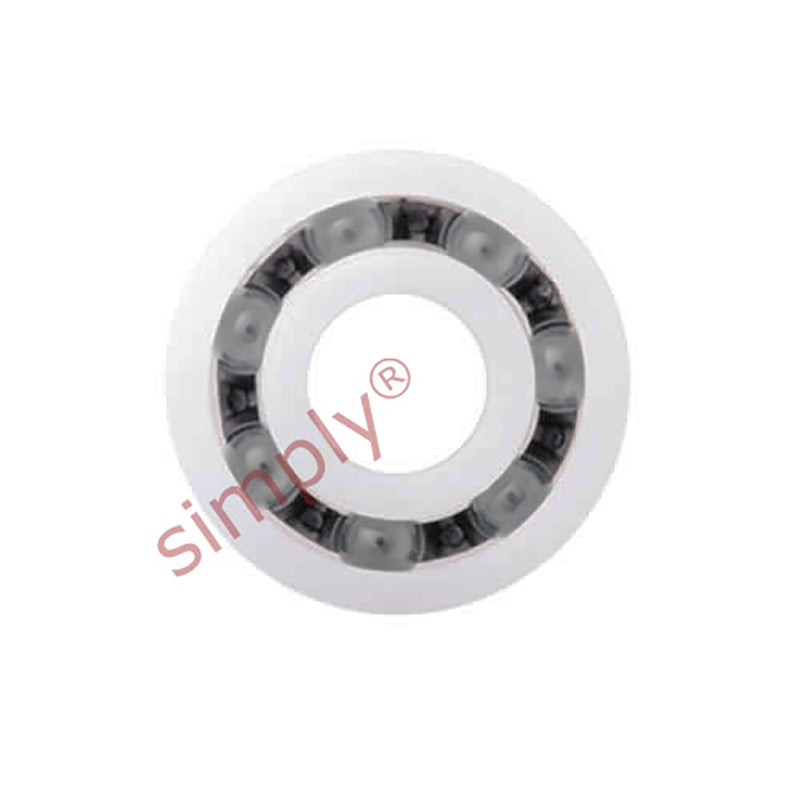

xiros xirodur BB6003B18030GL Open Type Radial Groove Ball Bearing with B180 Cage and Glass Balls 17x35x10mm - Allow 2-3 Days
xiros xirodur BB6003B18030GL Open Type Radial Groove Ball Bearing with B180 Cage and Glass Balls 17x35x10mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and glass balls. These bearings can be used as quiet-running and low-priced ball bearings. The independently developed material makes it possible to offer long service lifes and outstanding value for money. Benefits: Lubrication- and maintenance-free, quiet running, media-resistant. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1 | 17mm |
|---|---|
| d2 | 35mm |
| b1 | 10mm |
| Max static load capacity | 360 N |
| Static load capacity | 240 N |
| Dynamic load capacity | 330 N |
| Max speed | 1600 rpm |
| Race | B180 |
| Cage | B180 |
| Ball material | Glass |
