SKU: BB-6004-A500-70-ES

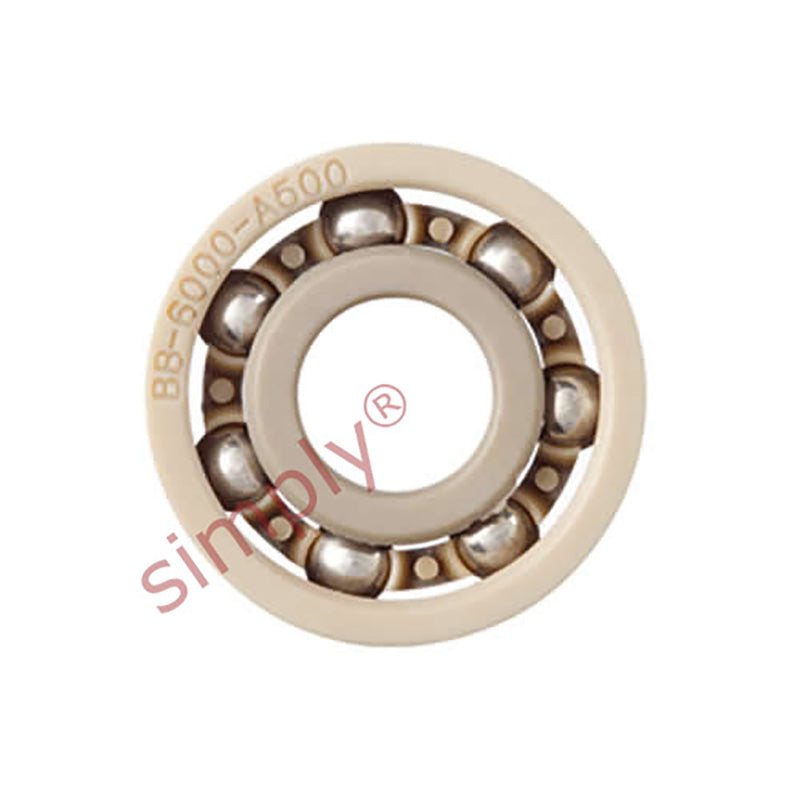

xiros xirodur BB6004A50070ES Open Type Polymer Ball Bearing with PEEK Cage and Stainless Steel Balls 20x42x12mm - Allow 2-3 Days
xiros xirodur BB6004A50070ES Open Type Polymer Ball Bearing with PEEK Cage and Stainless Steel Balls 20x42x12mm - Allow 2-3 Days
Regular price
$235.57
ex VAT
Regular price
Sale price
$235.57
ex VAT
In stock
Price Break
5+
$175.50
9+
$168.41
29+
$164.86
49+
$159.54
99+
$156.00
199+
$147.13
299+
$124.09
399+
$0.00
499+
$0.00
749+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
IGUS xiros® xirodur® A500 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of PEEK cages and stainless steel balls. The inner rings, outer rings and cages of these bearings are made of FDA-compliant plastics making these bearings suitable for use in the food industry. These bearings are suitable for high temperatures up to +150 deg C. Benefits: Made of FDA approved plastics, lubrication- and maintenance-free, corrosion-resistant, non-magnetic, washable, lightweight, high-temperature range, life time predictable. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Temperature Range:
- High Temp
Technical
Technical

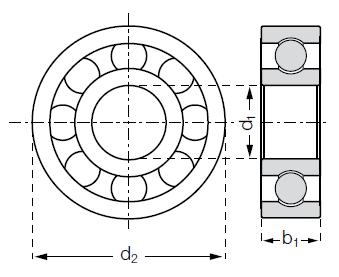

| d1 | 20mm |
|---|---|
| d2 | 42mm |
| b1 | 12mm |
| Max static axial load | 650 N |
| Static load capacity | 250 N |
| Dynamic load capacity | 350 N |
| Max speed | 1300 rpm |
| Race | A500 |
| Cage | PEEK |
| Ball material | Stainless Steel |
