SKU: BB-6004-B180-10-ES

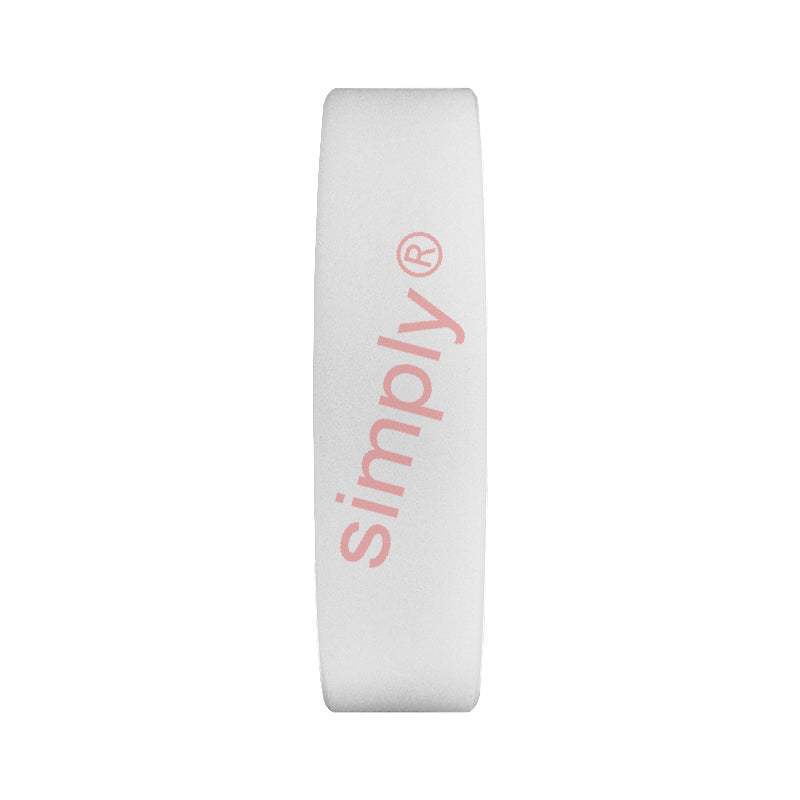

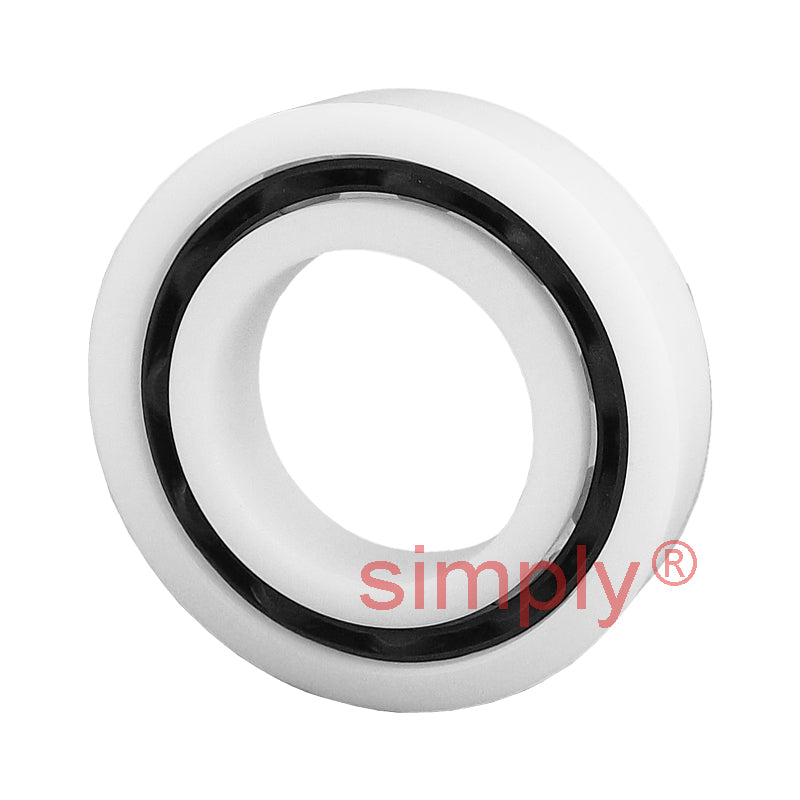

xiros xirodur BB6004B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 20x42x12mm
- Regular price
- $18.52 ex VAT
- Sale price
- $18.52
- Regular price
-
In stock
Quantity Price Breaks
5
$16.48
9
$15.56
29
$15.37
49
$15.19
99
$15.00
199
$14.82
299
$13.89
399
$13.70
499
$13.52
749
$13.33
999
$12.96
SKU:
BB-6004-B180-10-ES
xiros xirodur BB6004B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 20x42x12mm
- Regular price
- $18.52 ex VAT
- Sale price
- $18.52
- Regular price
-
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
Technical
| d1 | = | 20mm |
| d2 | = | 42mm |
| b1 | = | 12mm |
| Max static load capacity | = | 400 N |
| Static load capacity | = | 210 N |
| Dynamic load capacity | = | 294 N |
| Max speed | = | 1150 rpm |
| Race | = | B180 |
| Cage | = | PA |
| Ball material | = | Stainless Steel |
