• xiros xirodur BB6004B18010GLD Double Row Radial Groove Ball Bearing with PA Cage and Glass Balls 20x42x20mm
  • Igus
1 2

SKU: BB-6004-B180-10-GL-D

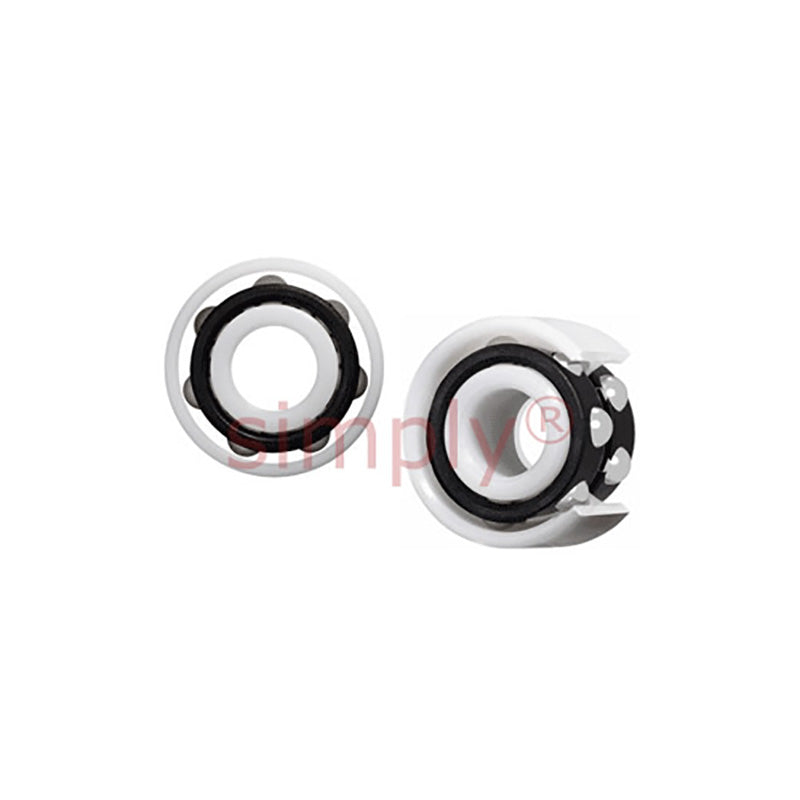

xiros xirodur BB6004B18010GLD Double Row Radial Groove Ball Bearing with PA Cage and Glass Balls 20x42x20mm

xiros xirodur BB6004B18010GLD Double Row Radial Groove Ball Bearing with PA Cage and Glass Balls 20x42x20mm
$31.08 ex VAT
$31.08 ex VAT
Sale Sold out

In stock

Price Break
5+ $20.82
9+ $19.65
29+ $19.41
49+ $19.18
99+ $18.95
199+ $18.71
299+ $17.54
399+ $17.31
499+ $17.08
749+ $16.84
999+ $16.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
IGUS xiros® xirodur® B180 Double Row Polymer Ball Bearings: These open type double row radial deep groove ball bearings consist of polymer cages and glass balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings support higher loads compared to single row bearings and are tribologically optimised. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing.
Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating.
Brand / Quality:
Igus - High Quality
Inside Diameter:
20mm
Outside Diameter:
42mm
Width:
20mm
Seals / Shields:
None
Clearance:
* Standard

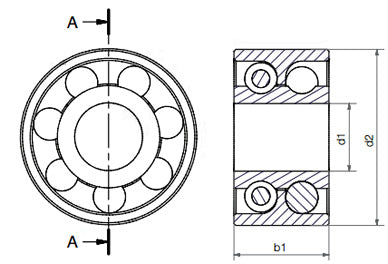

Technical
d1 20mm
d2 42mm
b1 20mm
Max static load capacity 1100 N
Static load capacity 350 N
Dynamic load capacity 530 N
Max speed 510 rpm
Race B180
Cage PA
Ball material Glass
