SKU: BB-6009-B180-10-GL

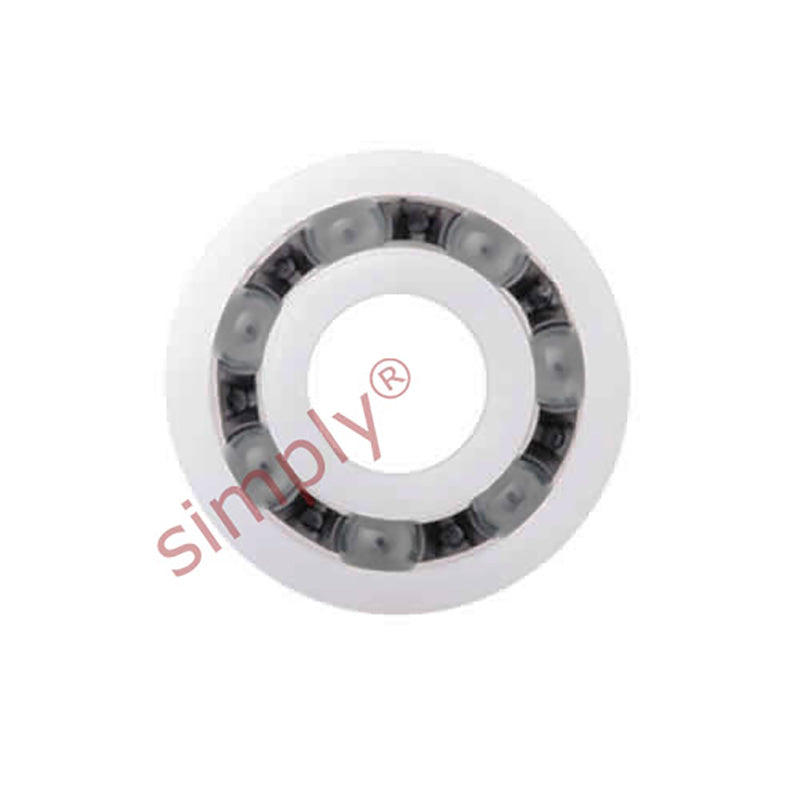

xiros xirodur BB6009B18010GL Open Type Radial Groove Ball Bearing with PA Cage and Glass Balls 45x75x16mm
- Regular price
- $59.35 ex VAT
- Sale price
- $59.35
- Regular price
-
In stock
Quantity Price Breaks
5
$52.82
9
$49.85
29
$49.26
49
$48.67
99
$48.07
199
$47.48
299
$44.51
399
$43.92
499
$43.33
749
$42.73
999
$41.55
SKU:
BB-6009-B180-10-GL
xiros xirodur BB6009B18010GL Open Type Radial Groove Ball Bearing with PA Cage and Glass Balls 45x75x16mm
- Regular price
- $59.35 ex VAT
- Sale price
- $59.35
- Regular price
-
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and glass balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
Technical
| d1 | = | 45mm |
| d2 | = | 75mm |
| b1 | = | 16mm |
| Max static load capacity | = | 900 N |
| Static load capacity | = | 380 N |
| Dynamic load capacity | = | 560 N |
| Max speed | = | 650 rpm |
| Race | = | B180 |
| Cage | = | PA |
| Ball material | = | Glass |
