SKU: BB-6010-B180-10-ES

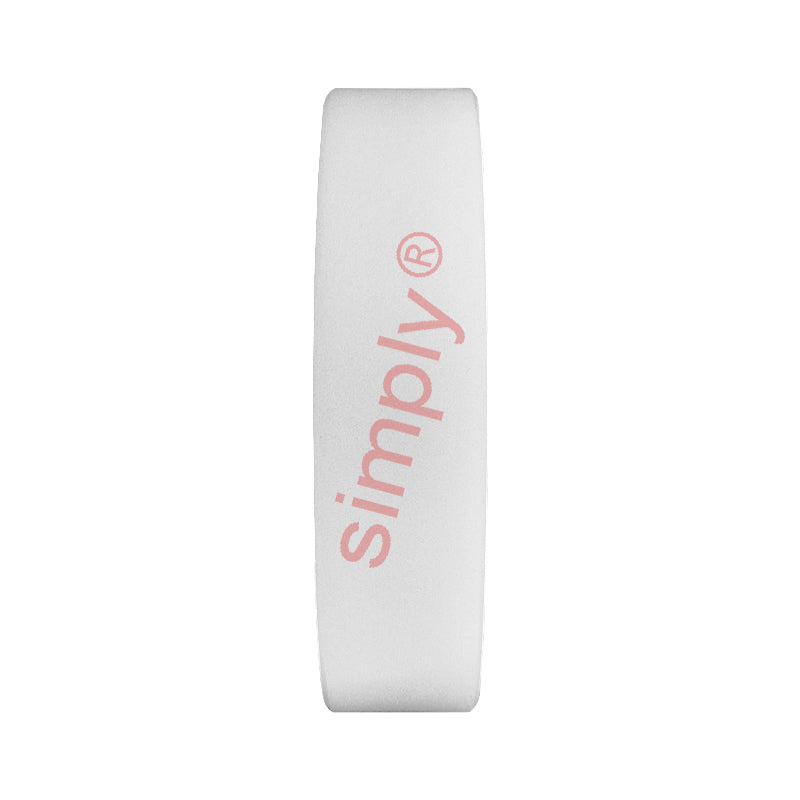

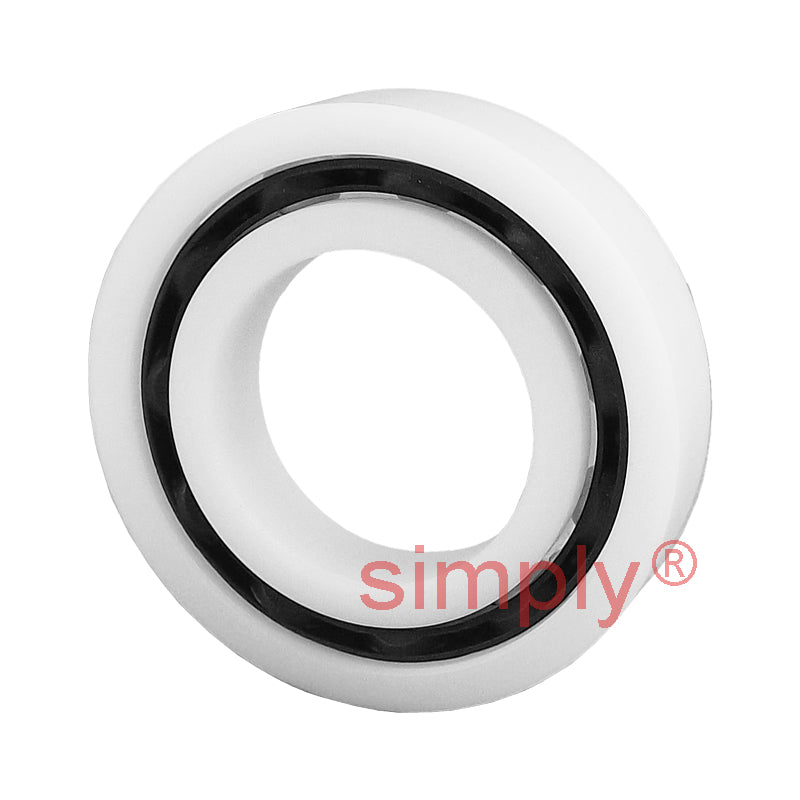

xiros xirodur BB6010B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 50x80x16mm
- Regular price
- $64.76 ex VAT
- Sale price
- $64.76
- Regular price
-
In stock
Quantity Price Breaks
5
$57.64
9
$54.40
29
$53.75
49
$53.10
99
$52.46
199
$51.81
299
$48.57
399
$47.92
499
$47.27
749
$46.63
999
$45.33
SKU:
BB-6010-B180-10-ES
xiros xirodur BB6010B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 50x80x16mm
- Regular price
- $64.76 ex VAT
- Sale price
- $64.76
- Regular price
-
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
Technical
| d1 | = | 50mm |
| d2 | = | 80mm |
| b1 | = | 16mm |
| Max static load capacity | = | 950 N |
| Static load capacity | = | 390 N |
| Dynamic load capacity | = | 580 N |
| Max speed | = | 600 rpm |
| Race | = | B180 |
| Cage | = | PA |
| Ball material | = | Stainless Steel |
