SKU: BB-608-A500-70-GL

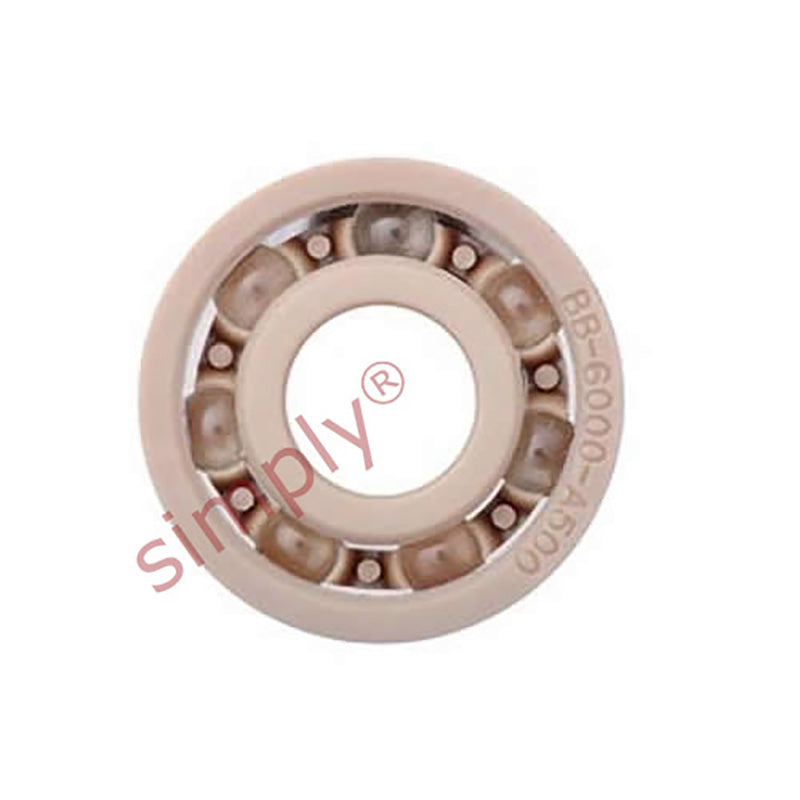

xiros xirodur BB608A50070GL Open Type Polymer Ball Bearing with PEEK Cage and Glass Balls 8x22x7mm - Allow 2-3 Days
xiros xirodur BB608A50070GL Open Type Polymer Ball Bearing with PEEK Cage and Glass Balls 8x22x7mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® A500 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of PEEK cages and glass balls. These bearings are suitable for high temperatures up to +150 deg C. These bearings are often used in environments where high chemical resistance is required and stainless steel components should be avoided entirely. Benefits: Lubrication- and maintenance-free, corrosion-resistant, non-magnetic, washable, chemical resistant, lightweight, high-temperature range, life time predictable. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 22mm
- Width:
- 7mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Temperature Range:
- High Temp
Technical
Technical
| d1 | 8mm |
|---|---|
| d2 | 22mm |
| b1 | 7mm |
| Max static axial load | 220 N |
| Static load capacity | 72 N |
| Dynamic load capacity | 97 N |
| Max speed | 2700 rpm |
| Race | A500 |
| Cage | PEEK |
| Ball material | Glass |
