SKU: BB-608-B180-10-ES

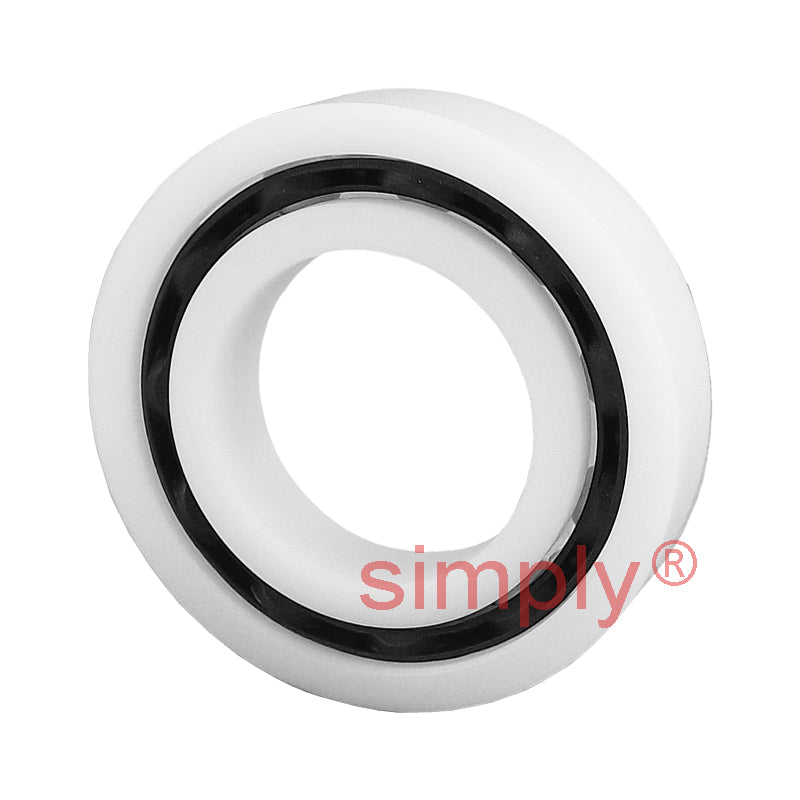

xiros xirodur BB608B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 8x22x7mm
- Regular price
- $11.32 ex VAT
- Sale price
- $11.32
- Regular price
-
In stock
Quantity Price Breaks
5
$10.07
9
$9.51
29
$9.40
49
$9.28
99
$9.17
199
$9.06
299
$8.49
399
$8.38
499
$8.26
749
$8.15
999
$7.92
SKU:
BB-608-B180-10-ES
xiros xirodur BB608B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 8x22x7mm
- Regular price
- $11.32 ex VAT
- Sale price
- $11.32
- Regular price
-
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
Technical
| d1 | = | 8mm |
| d2 | = | 22mm |
| b1 | = | 7mm |
| Max static load capacity | = | 165 N |
| Static load capacity | = | 60 N |
| Dynamic load capacity | = | 84 N |
| Max speed | = | 2200 rpm |
| Race | = | B180 |
| Cage | = | PA |
| Ball material | = | Stainless Steel |
