SKU: BB-608-D180-10-ES

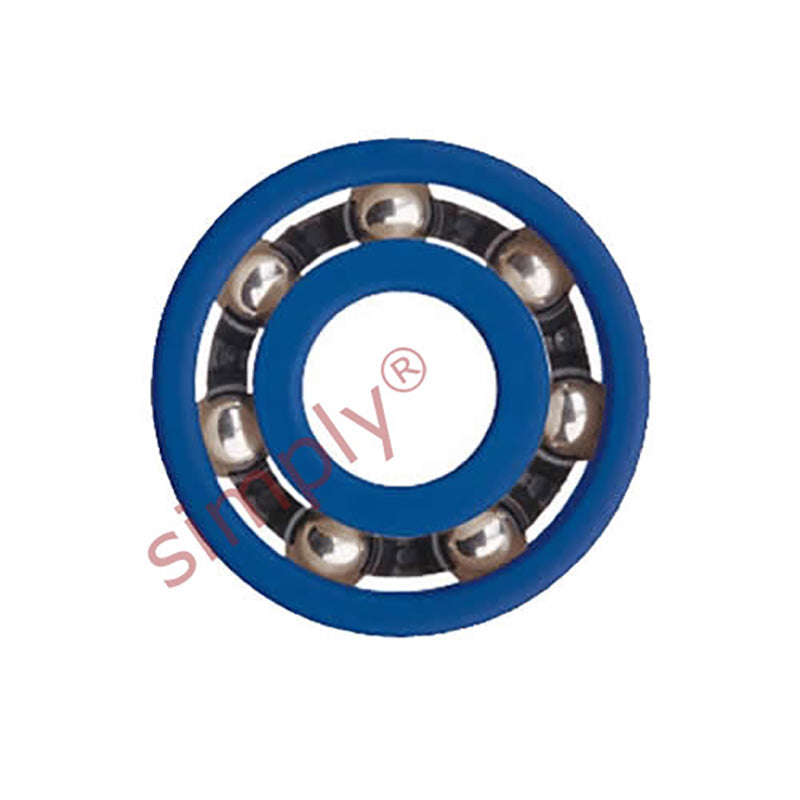

xiros xirodur BB608D18010ES Open Type Polymer Ball Bearing with PA Cage and Stainless Steel Balls 8x22x7mm - Allow 2-3 Days
- Regular price
- $37.93 ex VAT
- Sale price
- $37.93
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
5
$33.76
9
$31.86
29
$31.48
49
$31.10
99
$30.72
199
$30.34
299
$28.45
399
$28.07
499
$27.69
749
$27.31
999
$26.55
Description
|
IGUS xiros® xirodur® D180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. Bearings of this specially developed material xirodur® D180 are suitable for high rotating speeds. They are extremely wear resistant and archive a very high lifetime. Benefits: Lubrication- and maintenance-free, for high rotation speeds, long service life (up to 4x better than xirodur® B180), light weight |
Technical

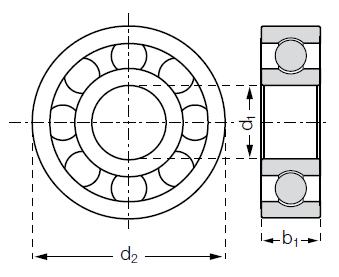

| d1 | = | 8mm |
| d2 | = | 22mm |
| b1 | = | 7mm |
| Max static load capacity | = | 0 N |
| Static load capacity | = | 20 N |
| Dynamic load capacity | = | 42 N |
| Max speed | = | 4300 rpm |
| Race | = | D180 |
| Cage | = | PA |
| Ball material | = | Stainless Steel |
