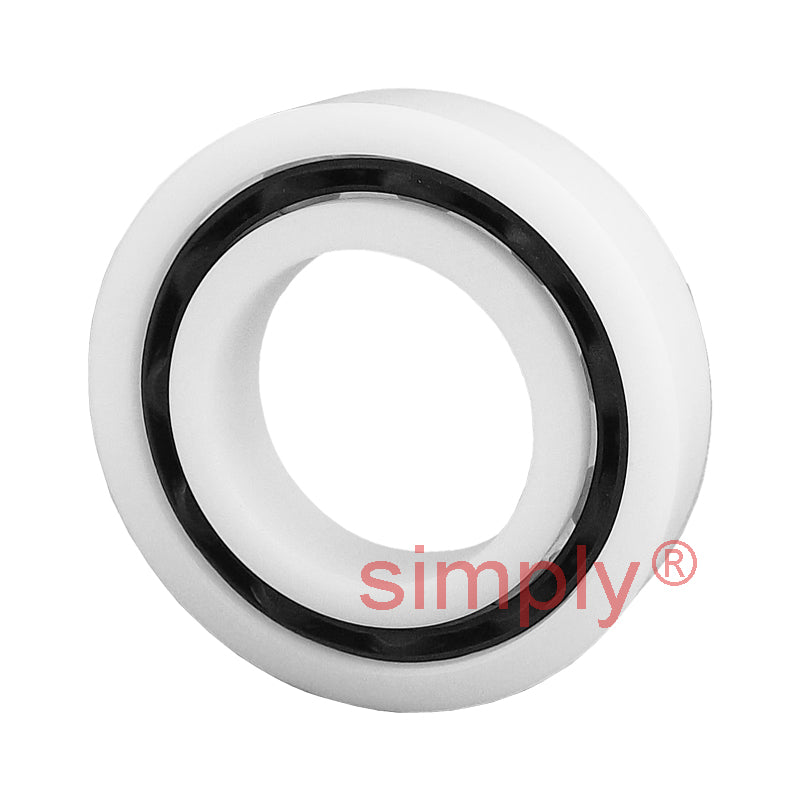

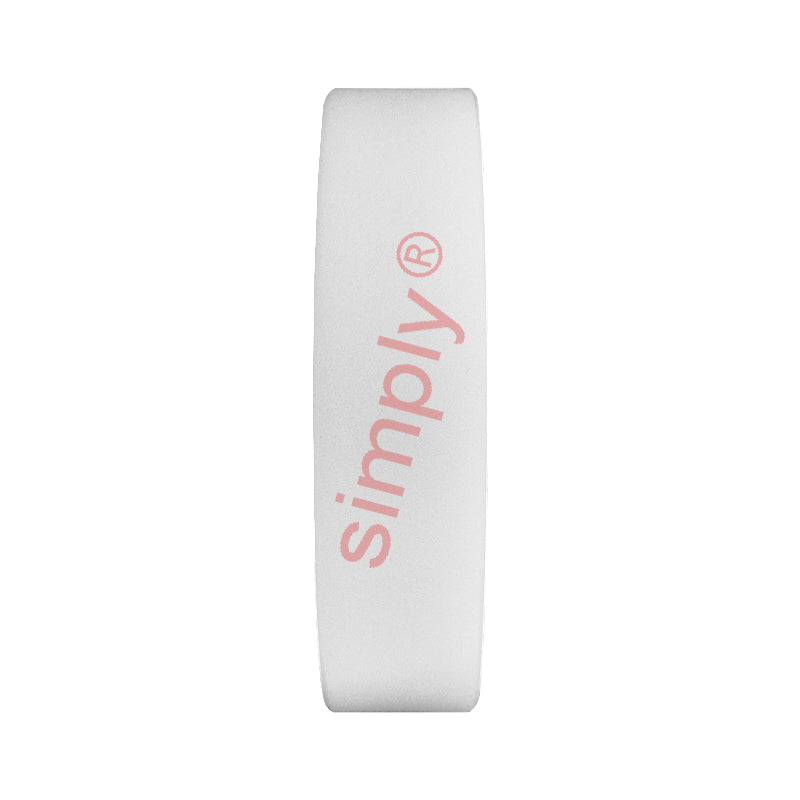

• xiros xirodur BB6203B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 17x40x12mm
  • xiros xirodur BB6203B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 17x40x12mm
  • Igus
1 3

SKU: BB-6203-B180-10-ES

xiros xirodur BB6203B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 17x40x12mm

xiros xirodur BB6203B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 17x40x12mm
$19.89 ex VAT
$19.89 ex VAT
Sale Sold out

In stock

Price Break
5+ $13.33
9+ $12.58
29+ $12.43
49+ $12.28
99+ $12.13
199+ $11.98
299+ $11.23
399+ $11.08
499+ $10.93
749+ $10.78
999+ $10.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing.
Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating.
Brand / Quality:
Igus - High Quality
Inside Diameter:
17mm
Outside Diameter:
40mm
Width:
12mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d1 17mm
d2 40mm
b1 12mm
Max static load capacity 360 N
Static load capacity 180 N
Dynamic load capacity 250 N
Max speed 1400 rpm
Race B180
Cage PA
Ball material Stainless Steel
