SKU: BB-688-B180-10-GL

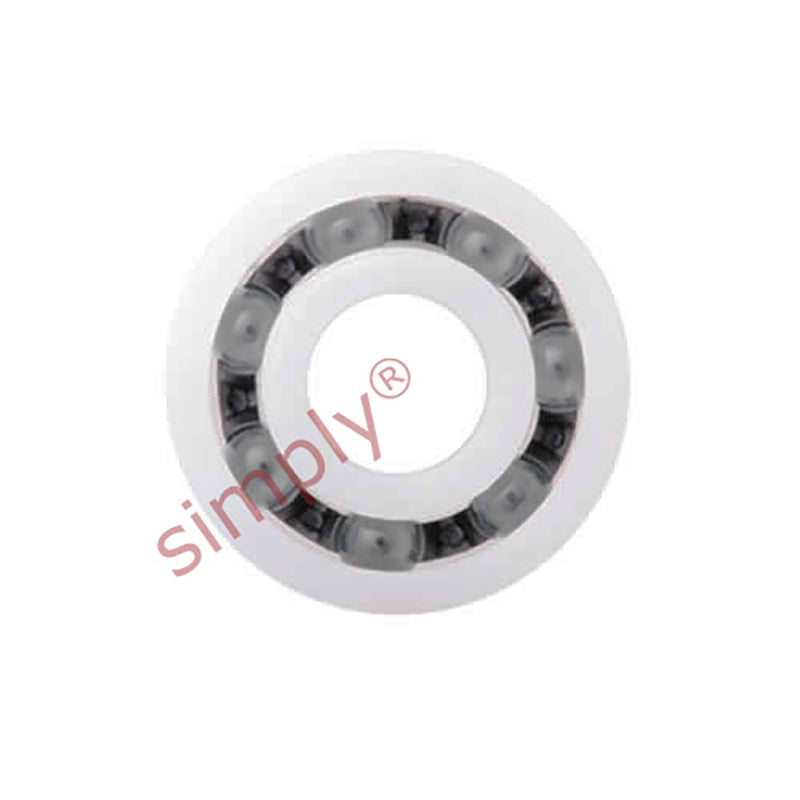

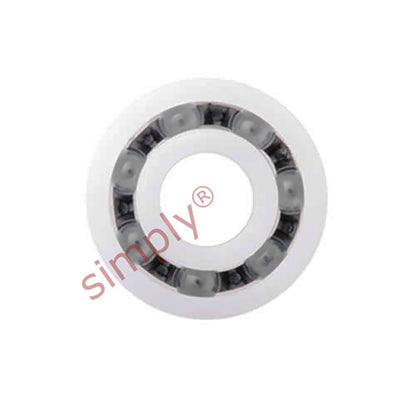

xiros xirodur BB688B18010GL Open Type Radial Groove Ball Bearing with PA Cage and Glass Balls 8x16x5mm
- Regular price
- $12.87 ex VAT
- Sale price
- $12.87
- Regular price
-
In stock
Quantity Price Breaks
5
$11.45
9
$10.81
29
$10.68
49
$10.55
99
$10.42
199
$10.30
299
$9.65
399
$9.52
499
$9.40
749
$9.27
999
$9.01
SKU:
BB-688-B180-10-GL
xiros xirodur BB688B18010GL Open Type Radial Groove Ball Bearing with PA Cage and Glass Balls 8x16x5mm
- Regular price
- $12.87 ex VAT
- Sale price
- $12.87
- Regular price
-
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and glass balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
Technical
| d1 | = | 8mm |
| d2 | = | 16mm |
| b1 | = | 5mm |
| Max static load capacity | = | 132 N |
| Static load capacity | = | 48 N |
| Dynamic load capacity | = | 67 N |
| Max speed | = | 1760 rpm |
| Race | = | B180 |
| Cage | = | PA |
| Ball material | = | Glass |
