SKU: BB-I-3264-16-B180-10-GL

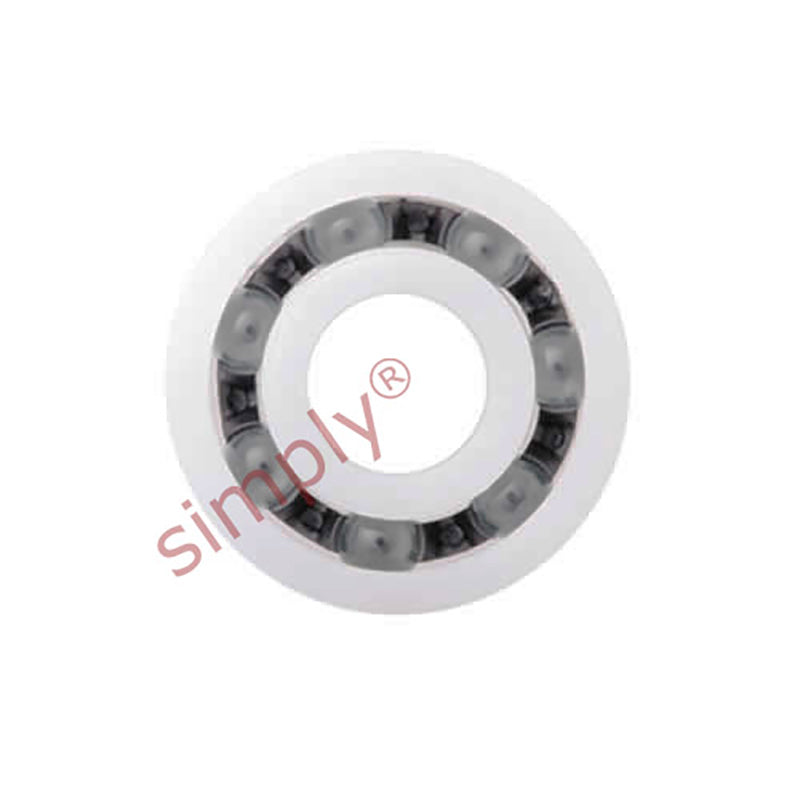

xiros xirodur BBI326416B18010GL Open Type Radial Groove Ball Bearing with PA Cage and Glass Balls 1x2x1/2 inch - Allow 2-3 Days
xiros xirodur BBI326416B18010GL Open Type Radial Groove Ball Bearing with PA Cage and Glass Balls 1x2x1/2 inch - Allow 2-3 Days
Regular price
$52.98
ex VAT
Regular price
Sale price
$52.98
ex VAT
In stock
Price Break
5+
$39.47
9+
$37.88
29+
$37.08
49+
$35.88
99+
$35.09
199+
$33.09
299+
$27.91
399+
$0.00
499+
$0.00
749+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and glass balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 12.7mm = 0.5 (1/2) inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1 | 1 inch |
|---|---|
| d2 | 2 inch |
| b1 | 1/2 inch |
| Max static load capacity | 520 N |
| Static load capacity | 240 N |
| Dynamic load capacity | 360 N |
| Max speed | 1050 rpm |
| Race | B180 |
| Cage | PA |
| Ball material | Glass |
