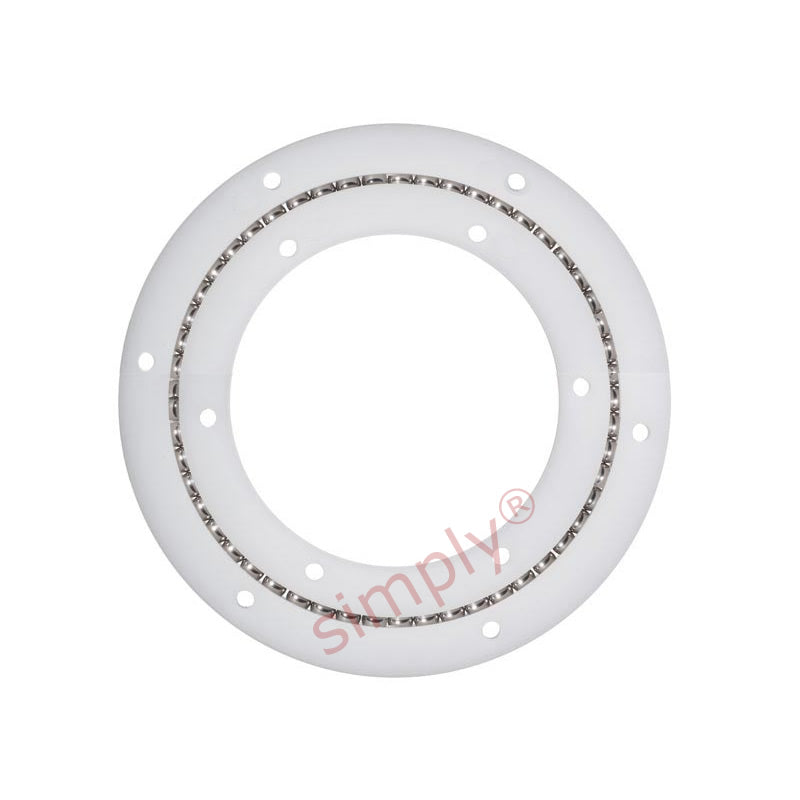

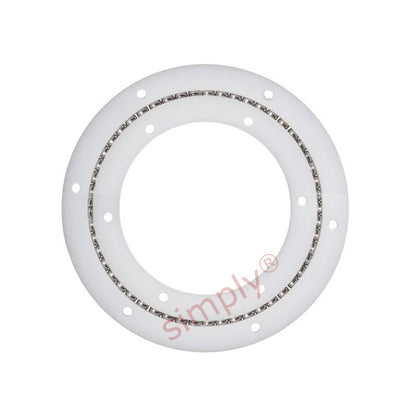

xiros xirodur BBRT0160ES Slewing Ring Bearing with Stainless Steel Balls 60x100x17.5mm

Name: xiros xirodur BBRT0160ES Slewing Ring Bearing with Stainless Steel Balls 60x100x17.5mm
Brand: Igus
SKU: BB-RT-01-60-ES
Price: 267.53 USD
Availability: InStock

$267.53 ex VAT

Sale Sold out

In stock

Price Break

5+ $179.20

9+ $169.13

29+ $167.12

49+ $165.11

99+ $163.09

199+ $161.08

299+ $151.01

399+ $149.00

499+ $146.98

749+ $144.97

999+ $140.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

IGUS xiros® xirodur® B180 Slewing Ring Bearings: The combination of stainless steel balls with polymer inner and outer races results in maintenance-free dry operation with low coefficients of friction. The xiros® slewing ring bearing can be used in temperatures of up to +80 deg C.
Benefits: Lubrication- and maintenance-free, low weight, corrosion-resistant, washable, cost-effective, electrically insulating

Brand / Quality:: Igus - High Quality
Inside Diameter:: 60mm
Outside Diameter:: 100mm
Width:: 17.5mm
Seals / Shields:: None
Clearance:: * Standard

Technical

D	100mm
D1	90mm
d	60mm
d1	68mm
H	17.5mm
h	2.5mm
T	60 degrees
K1	3.3mm
K2	3.3mm
Static load capacity	1250 N
Dynamic load capacity	250 N
Max speed	1500 rpm
Race	B180
Ball material	Stainless Steel
