• Major Branded BB203KRR5 Press Wheel Round Bore Bearing 0.515x1.5748x0.72 inch
1 1

SKU: BB203KRR5-MB

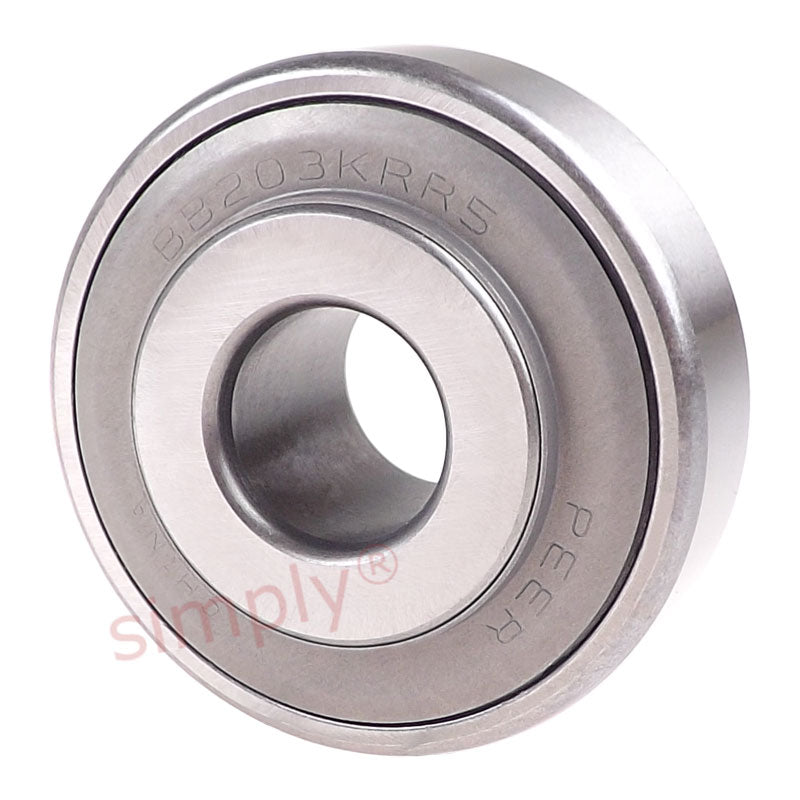

Major Branded BB203KRR5 Press Wheel Round Bore Bearing 0.515x1.5748x0.72 inch

Major Branded BB203KRR5 Press Wheel Round Bore Bearing 0.515x1.5748x0.72 inch
$21.27 ex VAT
$21.27 ex VAT
Sale Sold out

Low stock

Price Break
5+ $14.25
9+ $13.45
19+ $13.29
29+ $13.13
49+ $12.97
74+ $12.81
99+ $12.01
199+ $11.85
249+ $11.69
499+ $11.53
999+ $11.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Press Wheel/Closing Wheel
Application conditions:

  • Press and closing wheel perform different functions in the machine but are exposed to similar application conditions; similar bearing solutions are used
  • Dusty and sometimes moist environment
Benefits and functional features:

Increased productivity and bearing life in field:
  • Optimized internal geometry
  • High load capacity
  • High contamination feature package with exclusive sealing system
Increased speed to the market:
  • PEER offers the industries largest range of high performance seeding bearings

Seal Type: R, RST
Typical Application: Lawn and Garden Applications
Typical Environment: Less Contaminative Environment
Contamination Exclusion: Mild/Moderate
Speed Limit: Basic BRG. Size < 205: 3500 RPM, Basic BRG. Size > 205: 2000 RPM

Brand / Quality:
PEER - High Quality
Inside Diameter:
13.08mm = 0.515 inch
Outside Diameter:
40mm = 1.574 inch
Width:
18.28mm = 0.72 inch

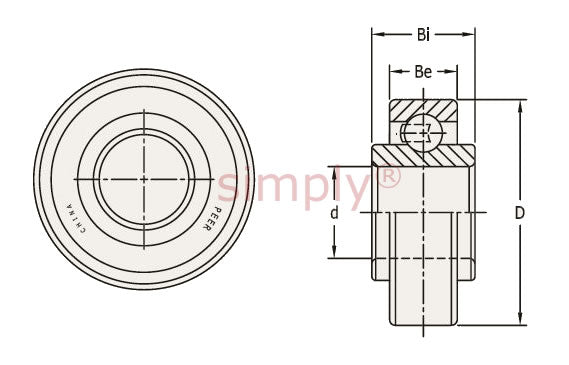

Technical
d 0.515 inch = 13.081mm (Tolerance +.0000 to minus 0.005)
D 1.5748 inch = 40mm (Tolerance +.0000 to minus 0.0005)
Bi 0.72 inch = 18.288mm (Tolerance +.0000 to minus 0.005)
Be 0.4724 inch = 12mm (Tolerance +.0000 to minus 0.005)
Seal/Shield Type R Seal
