SKU: BEF10-20-502-DURB

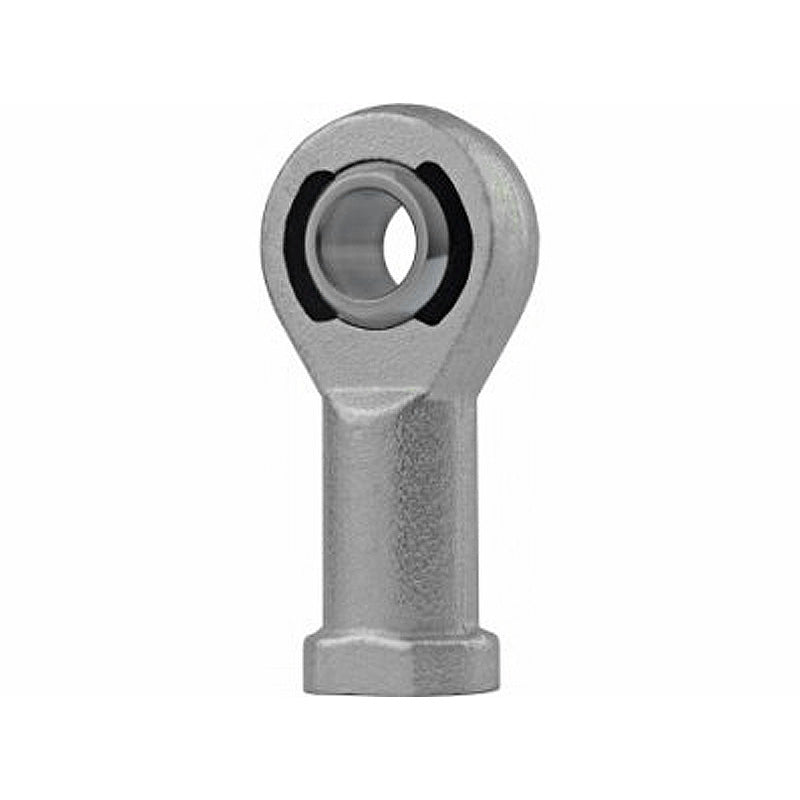

Durbal BEF10-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M10 Thread

Name: Durbal BEF10-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M10 Thread
Brand: Durbal
SKU: BEF10-20-502-DURB
Price: 29.31 USD
Availability: InStock

$29.31 ex VAT

Sale Sold out

In stock

Price Break

10+ $19.63

19+ $18.53

29+ $18.31

39+ $18.09

49+ $17.87

74+ $17.65

99+ $16.55

199+ $16.32

249+ $16.10

499+ $15.88

999+ $15.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M10
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 10mm
Material:: PTFE Lined

Technical

Thread Direction	-502 (Left)
d	10mm
G (Thread)	M10
B	14mm
C1	10.5mm
h1	43mm
d1	12.9mm
d2	28mm
d3	15mm
d4	19mm
dk	19mm
l3	20mm
l4	57mm
l5	6.5mm
l7	15mm
W	17mm
tilt angle α	13.5 deg
weight	0.074kg
basic load rating dyn C	10.4 kN
basic load rating stat Co	30.2 kN
radial clearance CN	0-10 µm
