SKU: BEF16-20-501-DURB

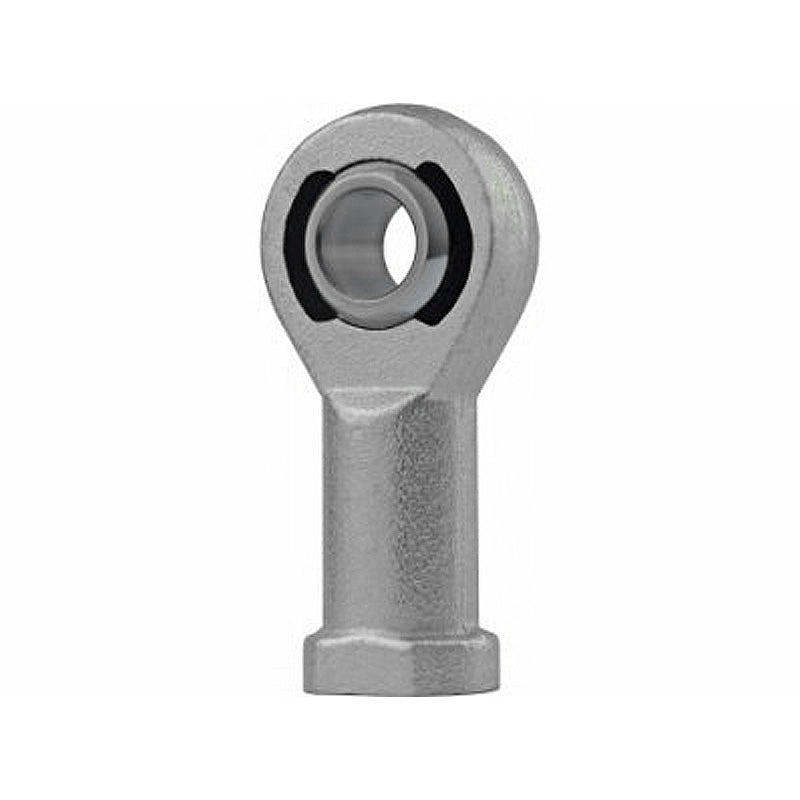

Durbal BEF16-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M16 Thread

Name: Durbal BEF16-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M16 Thread
Brand: Durbal
SKU: BEF16-20-501-DURB
Price: 68.60 USD
Availability: InStock

$68.60 ex VAT

Sale Sold out

Equivalent to: GIKR16PW SIKB16F

In stock

Price Break

10+ $45.95

19+ $43.37

29+ $42.85

39+ $42.34

49+ $41.82

74+ $41.30

99+ $38.72

199+ $38.21

249+ $37.69

499+ $37.17

999+ $36.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M16
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 16mm
Material:: PTFE Lined

Technical

Thread Direction	-501 (Right)
d	16mm
G (Thread)	M16
B	21mm
C1	15mm
h1	64mm
d1	19.3mm
d2	42mm
d3	22mm
d4	27mm
dk	28.52mm
l3	28mm
l4	85mm
l5	8mm
l7	22mm
W	22mm
tilt angle α	15.5 deg
weight	0.233kg
basic load rating dyn C	22.4 kN
basic load rating stat Co	59.6 kN
radial clearance CN	0-10 µm
