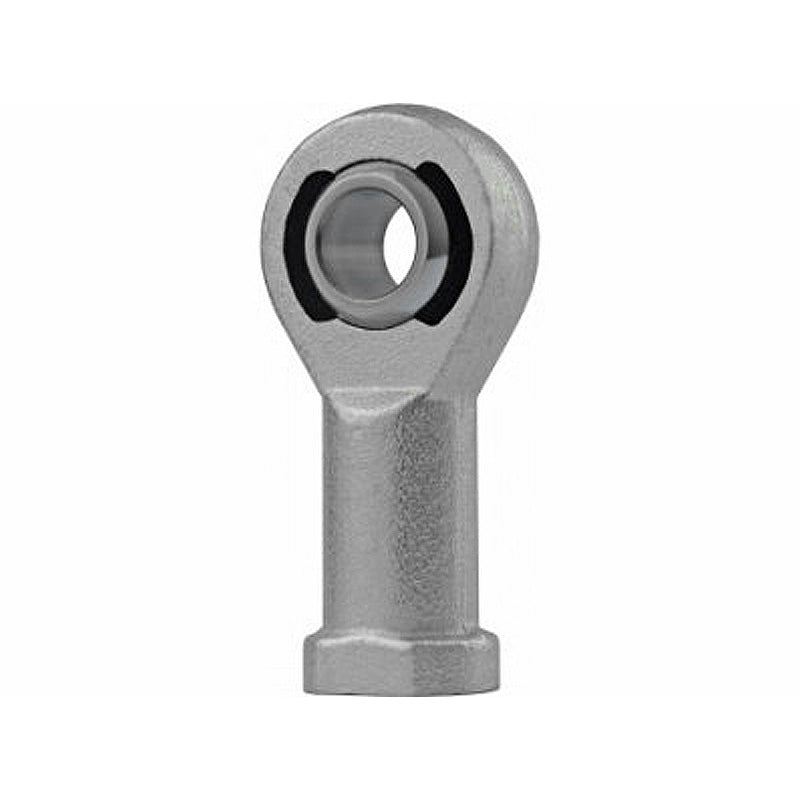

Durbal BEF20-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M20x1.5 Thread

SKU: BEF20-20-501-DURB

Durbal BEF20-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M20x1.5 Thread

$75.18 ex VAT
$75.18
ex VAT
Equivalent to: GIKR20PW SIKB20F
In stock

Quantity Price Breaks

10 $66.91
19 $63.15
29 $62.40
39 $61.65
49 $60.90
74 $60.14
99 $56.39
199 $55.63
249 $54.88
499 $54.13
999 $52.63
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Durbal BEF20-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M20x1.5 Thread
SKU: BEF20-20-501-DURB

Durbal BEF20-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M20x1.5 Thread

$75.18 ex VAT
$75.18
ex VAT

Description

DURBAL Heavy-Duty Female Rod Ends with Integral Spherical-Plain Bearing: Threaded female rod end consisting of a galvanised forged steel housing with a polyamide-PTFE-fibreglass-compound race and chromium-plated steel joint ball bearing. DURBAL-Glide (race) made of polyamide-PTFE-glass fibre compound, maintenance-free, encapsulates penetrating foreign particles. This fact and the greater overlay thickness compared to other sliding materials assure longer durability. Joint ball made of ball bearing steel, hardened, ground, polished and hard chromium plated, ensures reliable corrosion protection. Made of forged steel, tempered, extremely high loads resistant and protected against corrosion by galvanisation. Connection dimensions in accordance with DIN ISO 8139 for pneumatic cylinders. Temperature range: -30 deg C to +60 deg C.
Benefits: Radial clearance 0 – 10 µm, Suitable for use with impact loads, For use with small swivelling movements and at low speeds, Free from non-ferrous metals.
