SKU: BEFN06-20-501-DURB

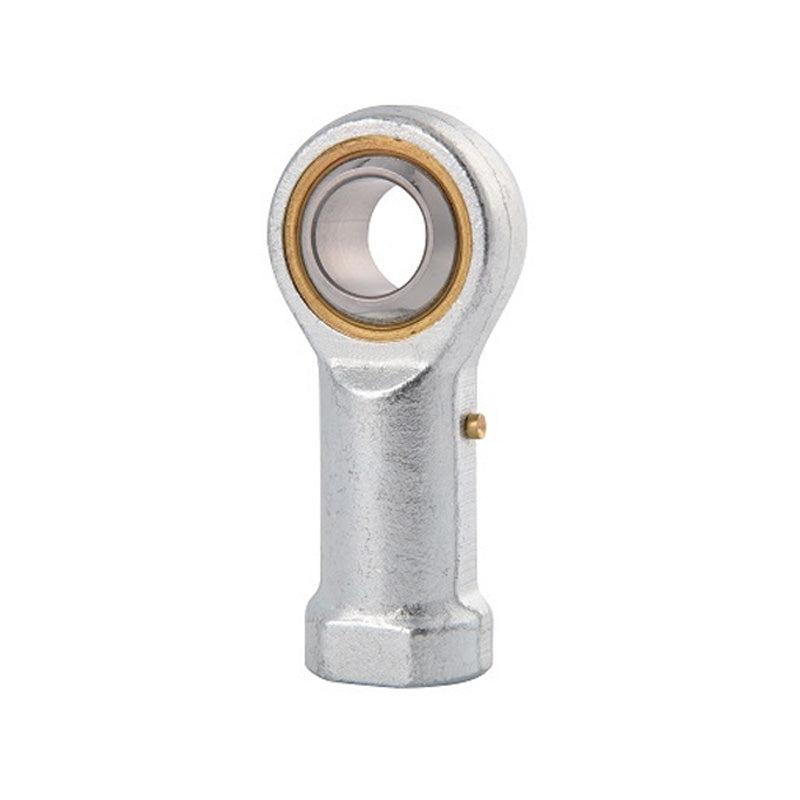

Durbal BEFN06-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M6 Thread

Name: Durbal BEFN06-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M6 Thread
Brand: Durbal
SKU: BEFN06-20-501-DURB
Price: 29.31 USD
Availability: InStock

$29.31 ex VAT

Sale Sold out

Equivalent to: GIKR6PB SIKAC6M

In stock

Price Break

10+ $19.63

19+ $18.53

29+ $18.31

39+ $18.09

49+ $17.87

74+ $17.65

99+ $16.55

199+ $16.32

249+ $16.10

499+ $15.88

999+ $15.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M6
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 6mm

Technical

Thread Direction	-501 (Right)d
6mm	G (Thread)
M6mm	B
9mm	C1
6.75mm	h1
30mm	d1
8.9mm	d2
20mm	d3
10mm	d4
13mm	dk
12.65mm	l3
12mm	l4
40mm	l5
5mm	l7
10mm	W
11mm	tilt angle α
13 deg	weight
0.022kg	basic load rating dyn C
3 kN	basic load rating stat Co
7.5 kN	radial clearance CN
20-60 µm	N/A
