SKU: BEFN08-20-502-DURB

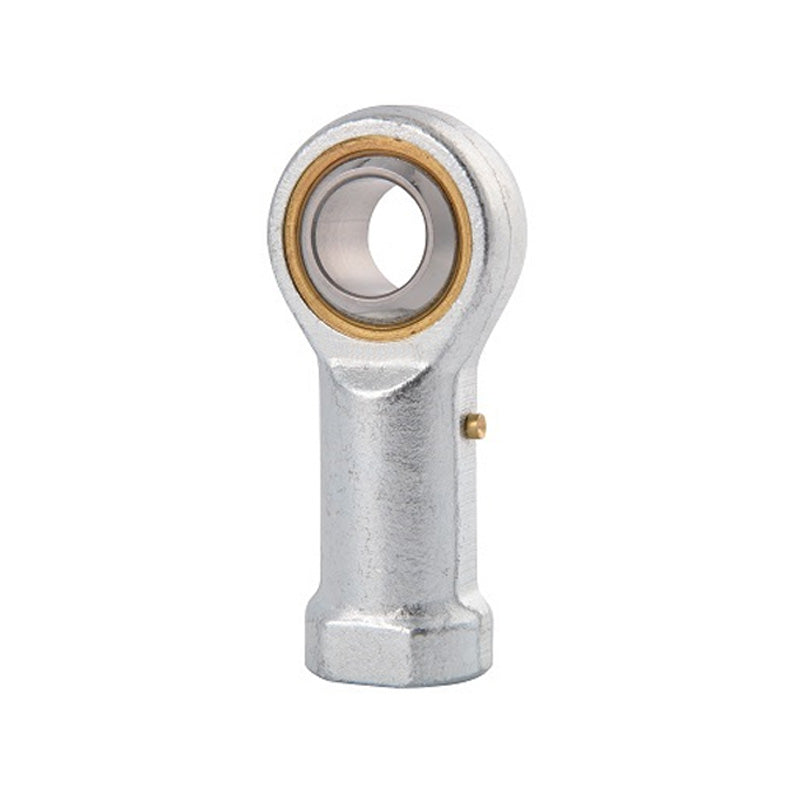

Durbal BEFN08-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M8 Thread

Name: Durbal BEFN08-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M8 Thread
Brand: Durbal
SKU: BEFN08-20-502-DURB
Price: 32.25 USD
Availability: InStock

$32.25 ex VAT

Sale Sold out

In stock

Price Break

10+ $21.60

19+ $20.39

29+ $20.14

39+ $19.90

49+ $19.66

74+ $19.42

99+ $18.20

199+ $17.96

249+ $17.72

499+ $17.47

999+ $16.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M8
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 8mm

Technical

Thread Direction	-502 (Left)d
8mm	G (Thread)
M8mm	B
12mm	C1
9mm	h1
36mm	d1
10.3mm	d2
24mm	d3
12.5mm	d4
16mm	dk
15.82mm	l3
16mm	l4
48mm	l5
5mm	l7
12mm	W
14mm	tilt angle α
13 deg	weight
0.047kg	basic load rating dyn C
4.8 kN	basic load rating stat Co
11.9 kN	radial clearance CN
20-60 µm	N/A
