SKU: BEFN10-21-501-DURB

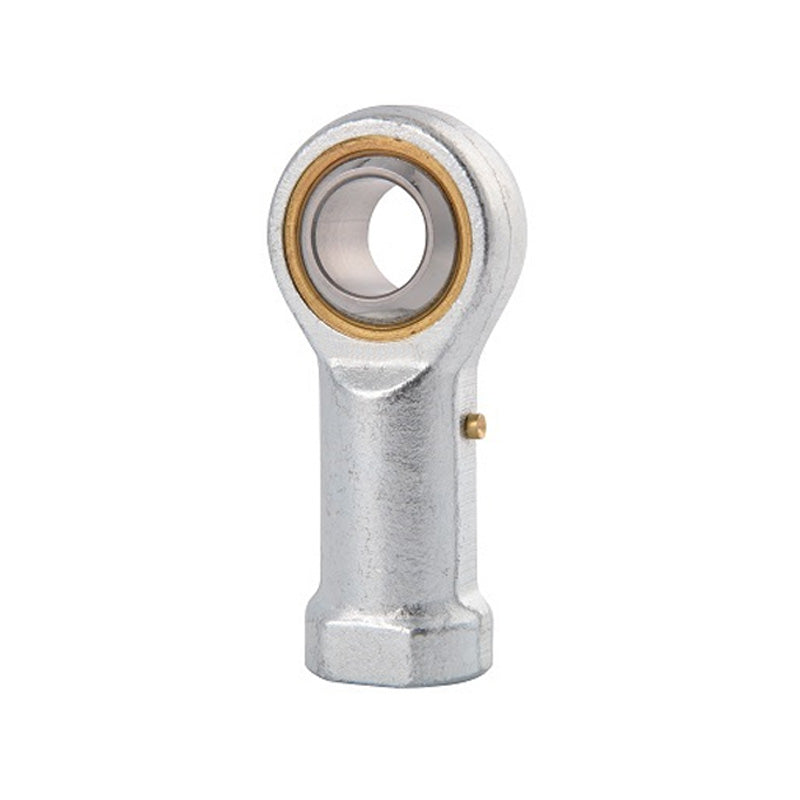

Durbal BEFN10-21-501 Maintenance Required Right Hand Metric Steel Female Rod End M10x1.25 Thread

Name: Durbal BEFN10-21-501 Maintenance Required Right Hand Metric Steel Female Rod End M10x1.25 Thread
Brand: Durbal
SKU: BEFN10-21-501-DURB
Price: 32.25 USD
Availability: InStock

$32.25 ex VAT

Sale Sold out

Equivalent to: SIKAC10MVZ019

In stock

Price Break

10+ $21.60

19+ $20.39

29+ $20.14

39+ $19.90

49+ $19.66

74+ $19.42

99+ $18.20

199+ $17.96

249+ $17.72

499+ $17.47

999+ $16.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M10x1.25
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 10mm

Technical

Thread Direction	-501 (Right)d
10mm	G (Thread)
M10x1.25mm	B
14mm	C1
10.5mm	h1
43mm	d1
12.9mm	d2
28mm	d3
15mm	d4
19mm	dk
19mm	l3
20mm	l4
57mm	l5
6.5mm	l7
15mm	W
17mm	tilt angle α
13 deg	weight
0.077kg	basic load rating dyn C
5.8 kN	basic load rating stat Co
14.5 kN	radial clearance CN
40-90 µm	N/A
