SKU: BEFN12-20-501-DURB

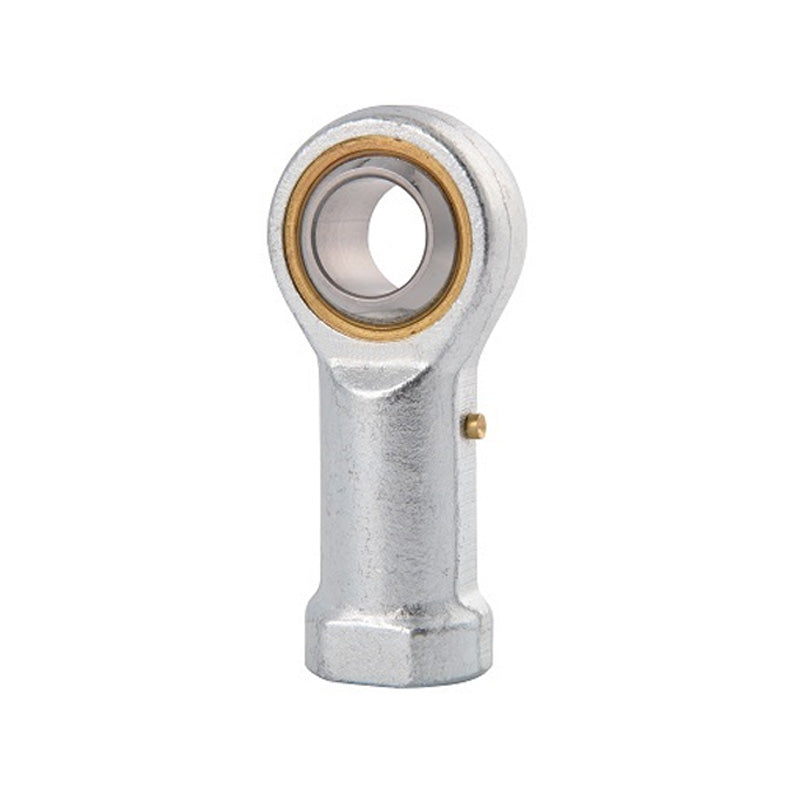

Durbal BEFN12-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M12 Thread

Name: Durbal BEFN12-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M12 Thread
Brand: Durbal
SKU: BEFN12-20-501-DURB
Price: 38.11 USD
Availability: InStock

$38.11 ex VAT

Sale Sold out

Equivalent to: GIKR12PB SIKAC12M

In stock

Price Break

10+ $25.53

19+ $24.09

29+ $23.80

39+ $23.52

49+ $23.23

74+ $22.94

99+ $21.51

199+ $21.22

249+ $20.94

499+ $20.65

999+ $20.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M12
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 12mm

Technical

Thread Direction	-501 (Right)d
12mm	G (Thread)
M12mm	B
16mm	C1
12mm	h1
50mm	d1
15.4mm	d2
32mm	d3
17.5mm	d4
22mm	dk
22.17mm	l3
22mm	l4
66mm	l5
6.5mm	l7
16mm	W
19mm	tilt angle α
13 deg	weight
0.1kg	basic load rating dyn C
7 kN	basic load rating stat Co
17.5 kN	radial clearance CN
40-90 µm	N/A
