SKU: BEFN16-20-502-DURB

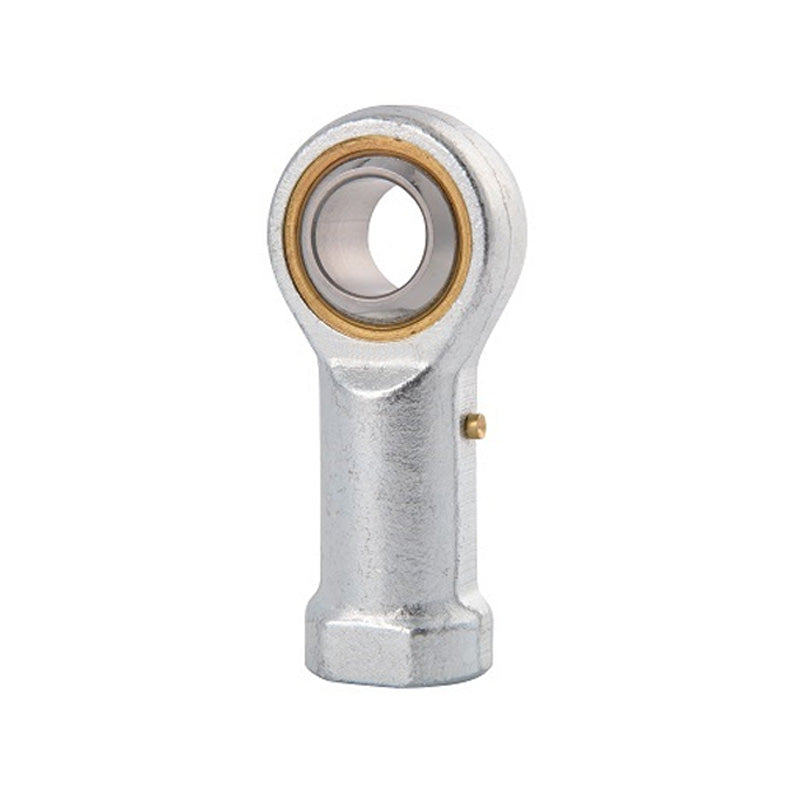

Durbal BEFN16-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M16 Thread

Name: Durbal BEFN16-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M16 Thread
Brand: Durbal
SKU: BEFN16-20-502-DURB
Price: 55.41 USD
Availability: InStock

$55.41 ex VAT

Sale Sold out

In stock

Price Break

10+ $37.11

19+ $35.03

29+ $34.61

39+ $34.19

49+ $33.78

74+ $33.36

99+ $31.28

199+ $30.86

249+ $30.44

499+ $30.02

999+ $29.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M16
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 16mm

Technical

Thread Direction	-502 (Left)d
16mm	G (Thread)
M16mm	B
21mm	C1
15mm	h1
64mm	d1
19.3mm	d2
42mm	d3
22mm	d4
27mm	dk
28.52mm	l3
28mm	l4
85mm	l5
8mm	l7
22mm	W
22mm	tilt angle α
15 deg	weight
0.22kg	basic load rating dyn C
11.4 kN	basic load rating stat Co
28.5 kN	radial clearance CN
50-110 µm	N/A
