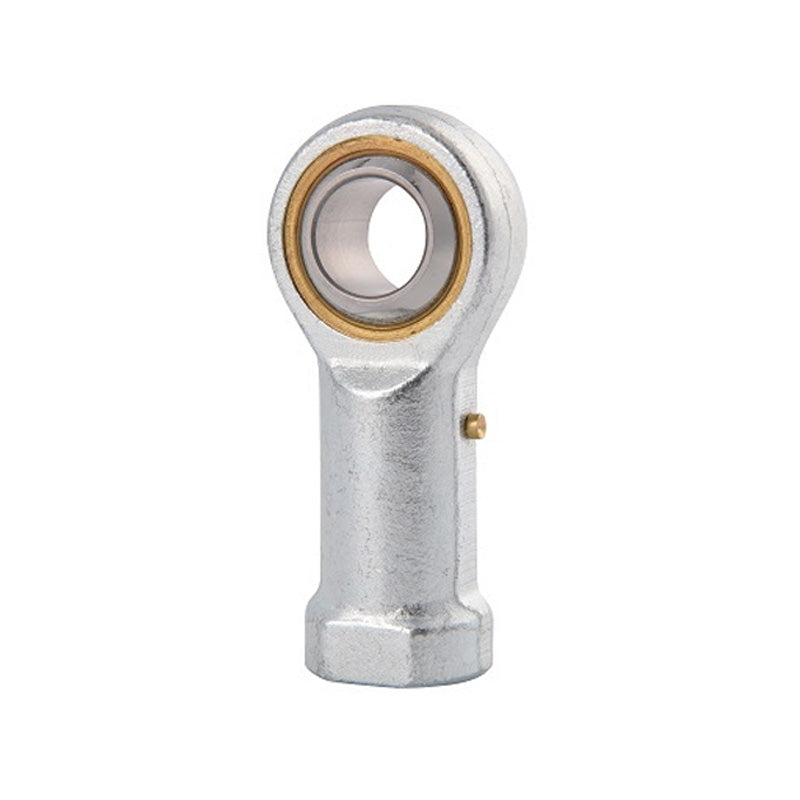

• Durbal BEFN18-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M18x1.5 Thread
  • Durbal
1 2

SKU: BEFN18-20-501-DURB

Durbal BEFN18-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M18x1.5 Thread

Durbal BEFN18-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M18x1.5 Thread
$71.23 ex VAT
$71.23 ex VAT
Sale Sold out

Equivalent to: GIKR18PB SIKAC18M

In stock

Price Break
10+ $47.71
19+ $45.03
29+ $44.50
39+ $43.96
49+ $43.42
74+ $42.89
99+ $40.21
199+ $39.67
249+ $39.14
499+ $38.60
999+ $37.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M18x1.5
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
18mm
Technical
Thread Direction -501 (Right)d
18mm G (Thread)
M18x1.5mm B
23mm C1
16.5mm h1
71mm d1
21.8mm d2
46mm d3
25mm d4
31mm dk
31.7mm l3
32mm l4
94mm l5
10mm l7
24mm W
27mm tilt angle α
15 deg weight
0.32kg basic load rating dyn C
17.6 kN basic load rating stat Co
44 kN radial clearance CN
50-110 µm N/A
