SKU: BEFN20-20-502-DURB

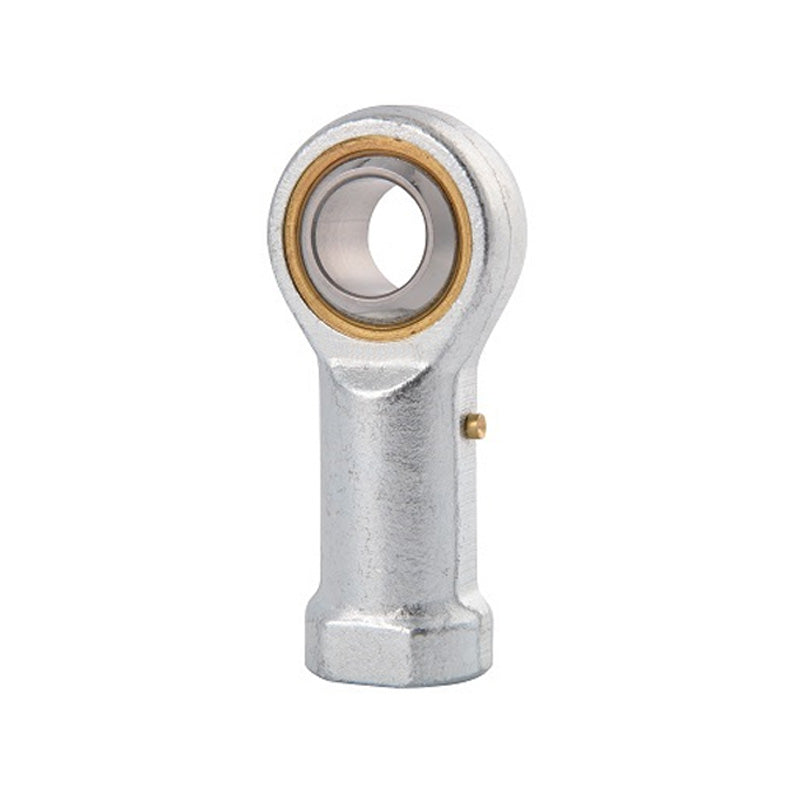

Durbal BEFN20-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M20x1.5 Thread

Name: Durbal BEFN20-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M20x1.5 Thread
Brand: Durbal
SKU: BEFN20-20-502-DURB
Price: 76.51 USD
Availability: InStock

$76.51 ex VAT

Sale Sold out

In stock

Price Break

10+ $51.25

19+ $48.37

29+ $47.79

39+ $47.22

49+ $46.64

74+ $46.06

99+ $43.19

199+ $42.61

249+ $42.03

499+ $41.46

999+ $40.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M20x1.5
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 20mm

Technical

Thread Direction	-502 (Left)d
20mm	G (Thread)
M20x1.5mm	B
25mm	C1
18mm	h1
77mm	d1
24.3mm	d2
50mm	d3
27.5mm	d4
34mm	dk
34.87mm	l3
33mm	l4
102mm	l5
10mm	l7
26mm	W
30mm	tilt angle α
15 deg	weight
0.42kg	basic load rating dyn C
20 kN	basic load rating stat Co
50 kN	radial clearance CN
50-110 µm	N/A
