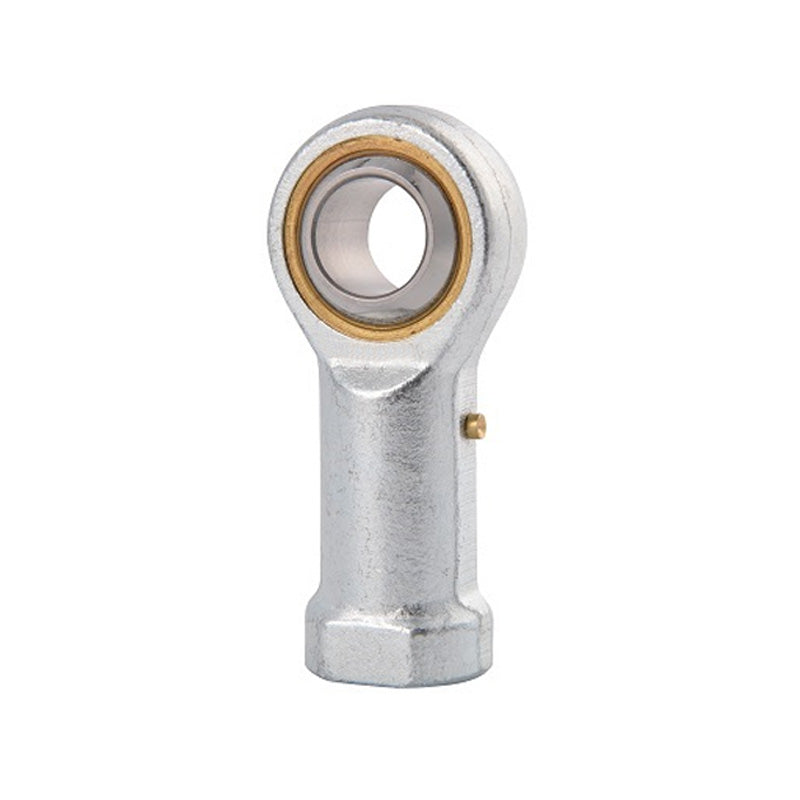

• Durbal BEFN22-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M22x1.5 Thread
  • Durbal
1 2

SKU: BEFN22-20-501-DURB

Durbal BEFN22-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M22x1.5 Thread

Durbal BEFN22-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M22x1.5 Thread
$111.32 ex VAT
$111.32 ex VAT
Sale Sold out

Equivalent to: GIKR22PB SIKAC22M

In stock

Price Break
10+ $74.56
19+ $70.38
29+ $69.54
39+ $68.70
49+ $67.86
74+ $67.02
99+ $62.84
199+ $62.00
249+ $61.16
499+ $60.32
999+ $58.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M22x1.5
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
22mm
Technical
Thread Direction -501 (Right)d
22mm G (Thread)
M22x1.5mm B
28mm C1
20mm h1
84mm d1
25.8mm d2
54mm d3
30mm d4
38mm dk
38.05mm l3
37mm l4
111mm l5
12mm l7
26mm W
32mm tilt angle α
15 deg weight
0.54kg basic load rating dyn C
22.8 kN basic load rating stat Co
59 kN radial clearance CN
60-120 µm N/A
