SKU: BEFN25-20-501-DURB

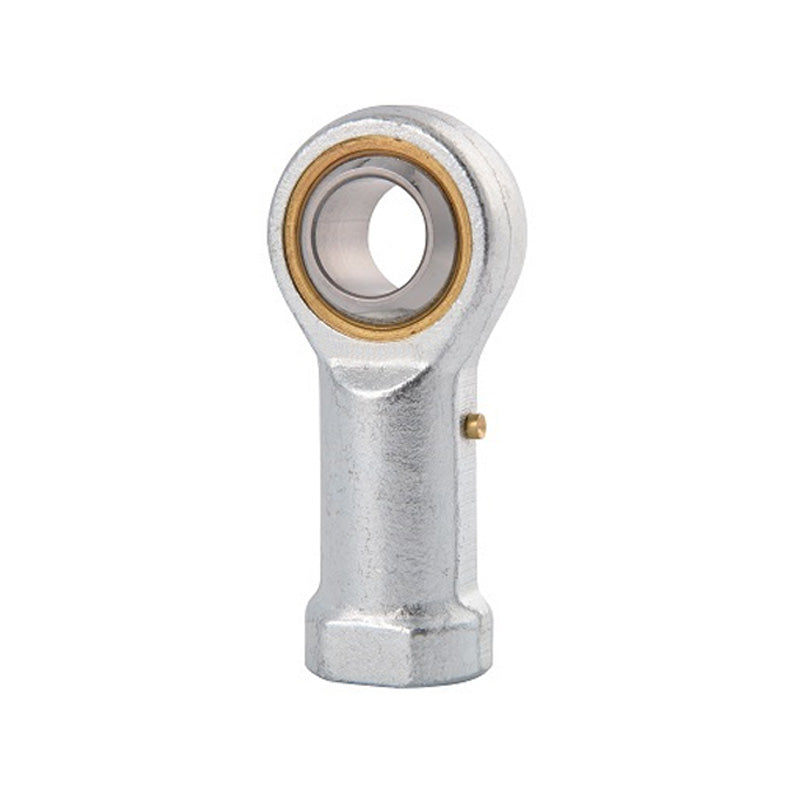

Durbal BEFN25-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M24x2 Thread

Name: Durbal BEFN25-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M24x2 Thread
Brand: Durbal
SKU: BEFN25-20-501-DURB
Price: 212.15 USD
Availability: InStock

$212.15 ex VAT

Sale Sold out

Equivalent to: GIKR25PB SIKAC25M

In stock

Price Break

10+ $142.11

19+ $134.12

29+ $132.53

39+ $130.93

49+ $129.33

74+ $127.74

99+ $119.75

199+ $118.16

249+ $116.56

499+ $114.96

999+ $111.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M24x2
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 25mm

Technical

Thread Direction	-501 (Right)d
25mm	G (Thread)
M24x2mm	B
31mm	C1
22mm	h1
94mm	d1
29.5mm	d2
60mm	d3
33.5mm	d4
42mm	dk
42.8mm	l3
42mm	l4
124mm	l5
12mm	l7
30mm	W
36mm	tilt angle α
15 deg	weight
0.73kg	basic load rating dyn C
28 kN	basic load rating stat Co
70 kN	radial clearance CN
60-120 µm	N/A
