SKU: BEFN25-20-502-DURB

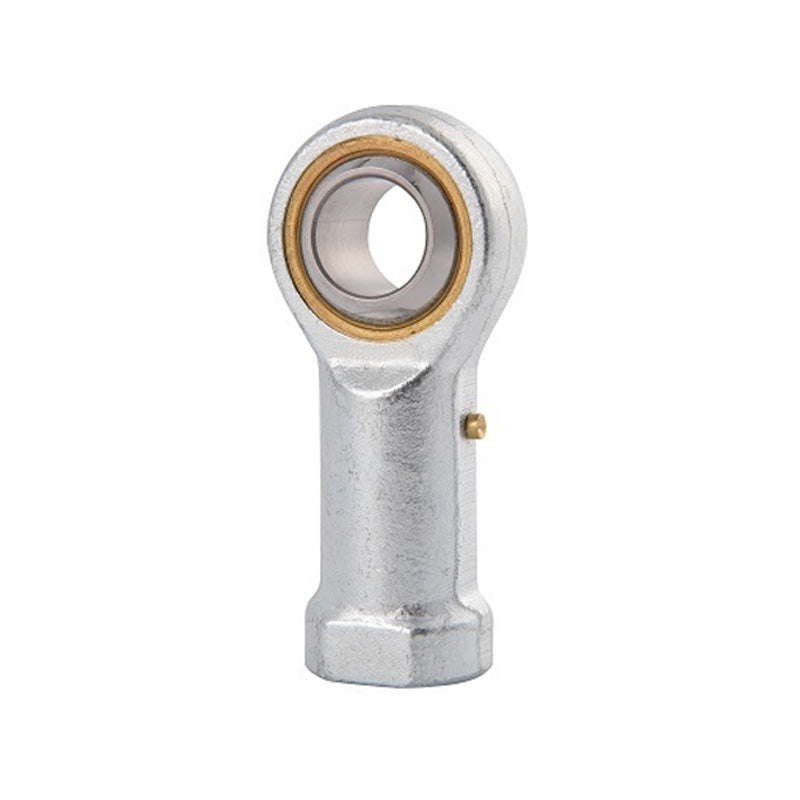

Durbal BEFN25-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M24x2 Thread

Name: Durbal BEFN25-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M24x2 Thread
Brand: Durbal
SKU: BEFN25-20-502-DURB
Price: 116.53 USD
Availability: InStock

$116.53 ex VAT

Sale Sold out

In stock

Price Break

10+ $78.05

19+ $73.67

29+ $72.79

39+ $71.91

49+ $71.04

74+ $70.16

99+ $65.78

199+ $64.90

249+ $64.02

499+ $63.14

999+ $61.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M24x2
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 25mm

Technical

Thread Direction	-502 (Left)d
25mm	G (Thread)
M24x2mm	B
31mm	C1
22mm	h1
94mm	d1
29.5mm	d2
60mm	d3
33.5mm	d4
42mm	dk
42.8mm	l3
42mm	l4
124mm	l5
12mm	l7
30mm	W
36mm	tilt angle α
15 deg	weight
0.73kg	basic load rating dyn C
28 kN	basic load rating stat Co
70 kN	radial clearance CN
60-120 µm	N/A
