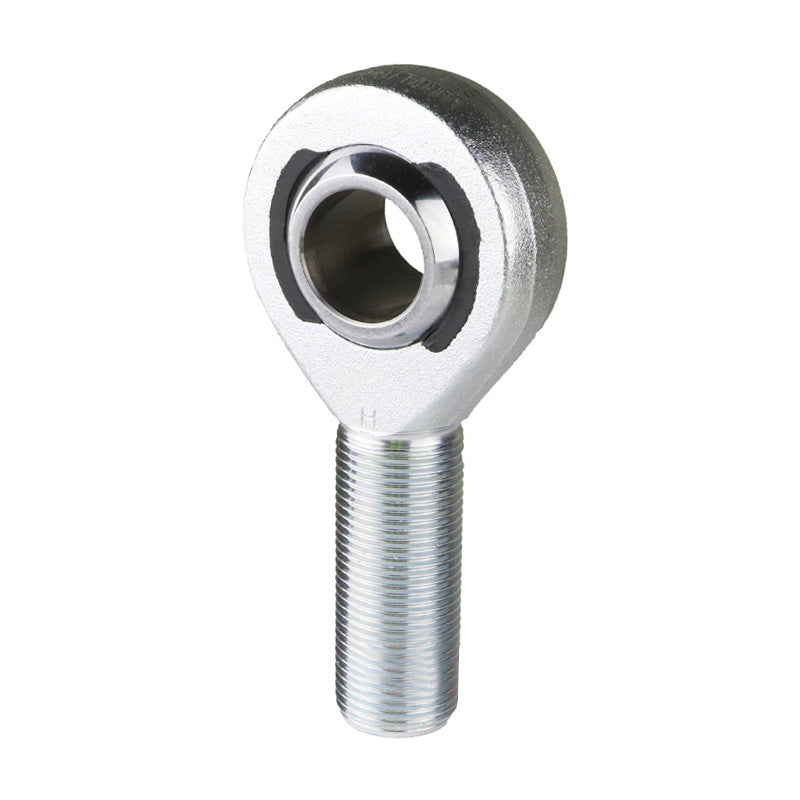

• Durbal BEM05-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M5 Thread
  • Durbal
1 2

SKU: BEM05-20-501-DURB

Durbal BEM05-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M5 Thread

Durbal BEM05-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M5 Thread
$26.97 ex VAT
$26.97 ex VAT
Sale Sold out

Equivalent to: GAKR5PW SAKB5F

In stock

Price Break
10+ $18.07
19+ $17.05
29+ $16.85
39+ $16.65
49+ $16.44
74+ $16.24
99+ $15.23
199+ $15.02
249+ $14.82
499+ $14.62
999+ $14.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M5
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
5mm
Material:
PTFE Lined
Technical
Thread Direction -501 (Right)
d 5mm
G (Thread) M5
B 8mm
C1 6mm
h1 33mm
d1 7.7mm
d2 18mm
dk 11.06mm
l1 20mm
l2 42mm
l7 9mm
tilt angle α 13 deg
weight 0.014kg
basic load rating dyn C 3.9 kN
basic load rating stat Co 8.4 kN
radial clearance CN 0-10 µm
