SKU: BEM06-20-501-DURB

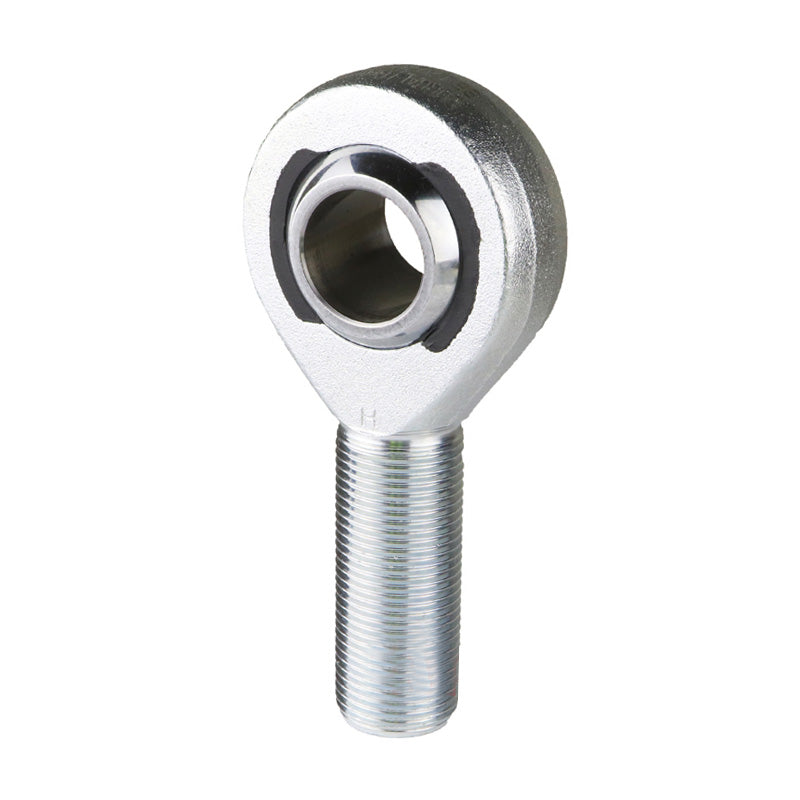

Durbal BEM06-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M6 Thread

Name: Durbal BEM06-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M6 Thread
Brand: Durbal
SKU: BEM06-20-501-DURB
Price: 26.97 USD
Availability: InStock

$26.97 ex VAT

Sale Sold out

Equivalent to: GAKR6PW SAKB6F

In stock

Price Break

10+ $18.07

19+ $17.05

29+ $16.85

39+ $16.65

49+ $16.44

74+ $16.24

99+ $15.23

199+ $15.02

249+ $14.82

499+ $14.62

999+ $14.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M6
Thread M / F:: Male
Thread Direction:: Right Hand
Inside Diameter:: 6mm
Material:: PTFE Lined

Technical

Thread Direction	-501 (Right)
d	6mm
G (Thread)	M6
B	9mm
C1	6.75mm
h1	36mm
d1	8.9mm
d2	20mm
dk	12.65mm
l1	22mm
l2	46mm
l7	12mm
tilt angle α	13 deg
weight	0.02kg
basic load rating dyn C	4.6 kN
basic load rating stat Co	11.7 kN
radial clearance CN	0-10 µm
