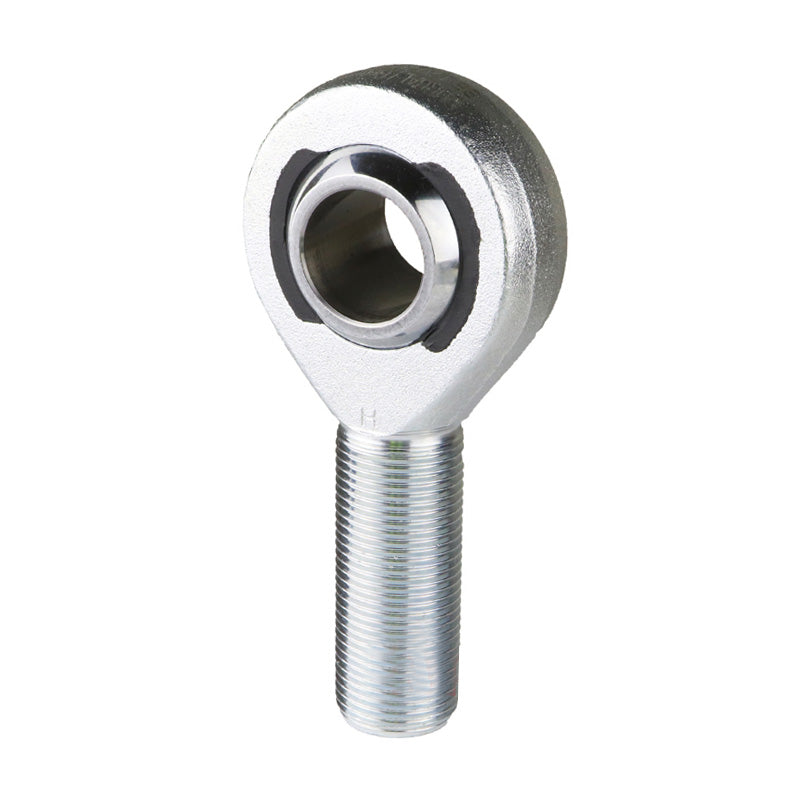

• Durbal BEM08-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M8 Thread
  • Durbal
1 2

SKU: BEM08-20-501-DURB

Durbal BEM08-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M8 Thread

Durbal BEM08-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M8 Thread
$41.04 ex VAT
$41.04 ex VAT
Sale Sold out

Equivalent to: GAKR8PW SAKB8F

In stock

Price Break
10+ $27.49
19+ $25.95
29+ $25.64
39+ $25.33
49+ $25.02
74+ $24.71
99+ $23.17
199+ $22.86
249+ $22.55
499+ $22.24
999+ $21.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M8
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
8mm
Material:
PTFE Lined
Technical
Thread Direction -501 (Right)
d 8mm
G (Thread) M8
B 12mm
C1 9mm
h1 42mm
d1 10.3mm
d2 24mm
dk 15.82mm
l1 25mm
l2 54mm
l7 15mm
tilt angle α 14.5 deg
weight 0.038kg
basic load rating dyn C 7 kN
basic load rating stat Co 21.5 kN
radial clearance CN 0-10 µm
