SKU: BEM08-20-502-DURB

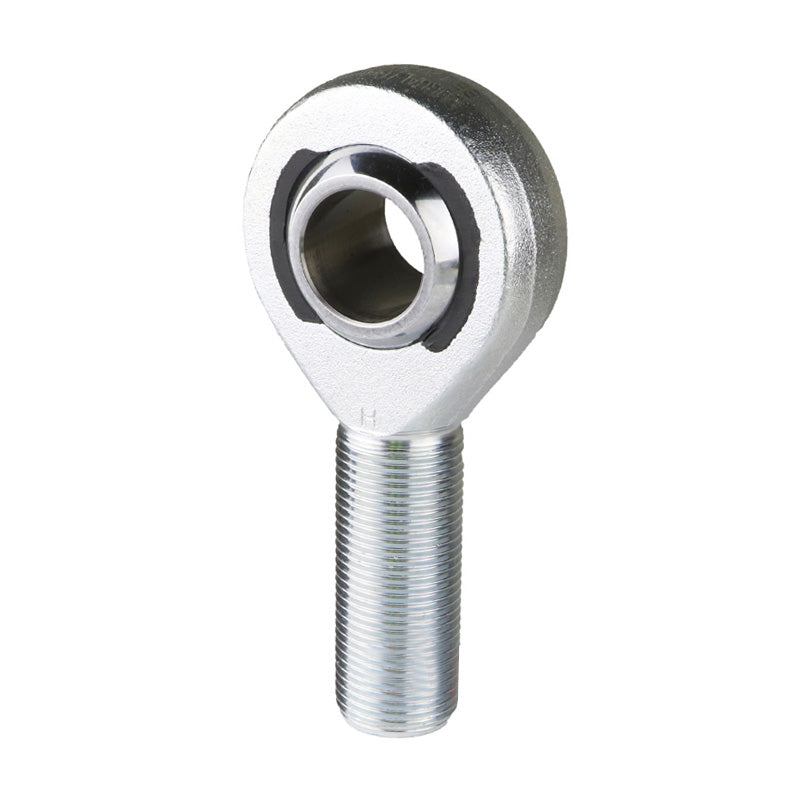

Durbal BEM08-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Male Rod End M8 Thread

Name: Durbal BEM08-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Male Rod End M8 Thread
Brand: Durbal
SKU: BEM08-20-502-DURB
Price: 30.33 USD
Availability: InStock

$30.33 ex VAT

Sale Sold out

In stock

Price Break

10+ $20.32

19+ $19.18

29+ $18.95

39+ $18.72

49+ $18.49

74+ $18.26

99+ $17.12

199+ $16.89

249+ $16.67

499+ $16.44

999+ $15.98

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M8
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 8mm
Material:: PTFE Lined

Technical

Thread Direction	-502 (Left)
d	8mm
G (Thread)	M8
B	12mm
C1	9mm
h1	42mm
d1	10.3mm
d2	24mm
dk	15.82mm
l1	25mm
l2	54mm
l7	15mm
tilt angle α	14.5 deg
weight	0.038kg
basic load rating dyn C	7 kN
basic load rating stat Co	21.5 kN
radial clearance CN	0-10 µm
