SKU: BEM10-20-501-DURB

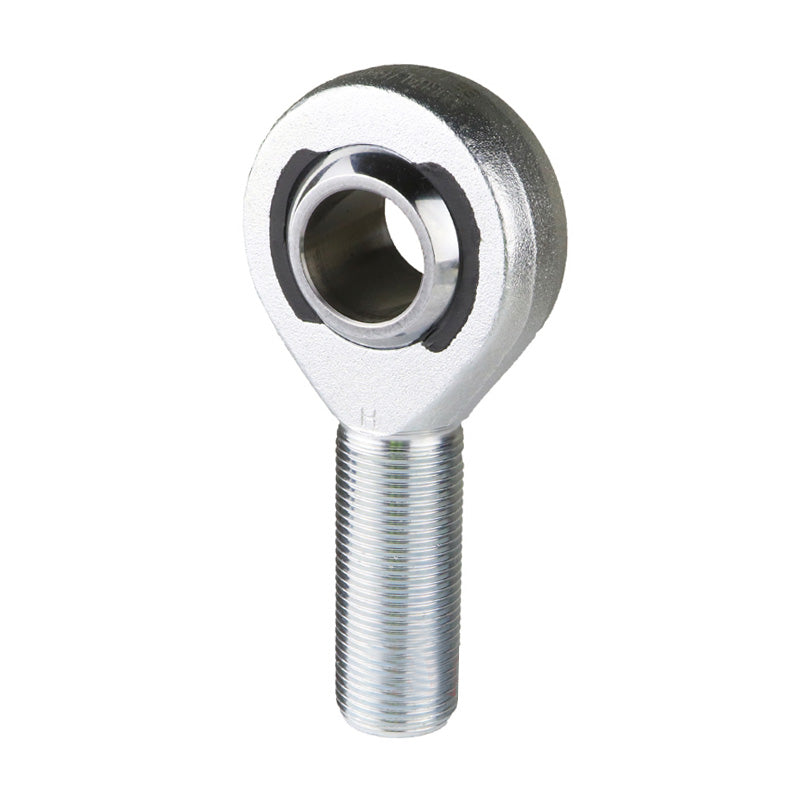

Durbal BEM10-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M10 Thread

Durbal BEM10-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M10 Thread
$52.59 ex VAT
$52.59 ex VAT
Sale Sold out

Equivalent to: GAKR10PW SAKB10F

In stock

Price Break
10+ $35.23
19+ $33.25
29+ $32.85
39+ $32.46
49+ $32.06
74+ $31.66
99+ $29.69
199+ $29.29
249+ $28.89
499+ $28.50
999+ $27.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M10
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
10mm
Material:
PTFE Lined
Technical
Thread Direction -501 (Right)
d 10mm
G (Thread) M10
B 14mm
C1 10.5mm
h1 48mm
d1 12.9mm
d2 28mm
dk 19mm
l1 29mm
l2 62mm
l7 15mm
tilt angle α 13.5 deg
weight 0.06kg
basic load rating dyn C 10.4 kN
basic load rating stat Co 24.9 kN
radial clearance CN 0-10 µm
