SKU: BEM10-20-502-DURB

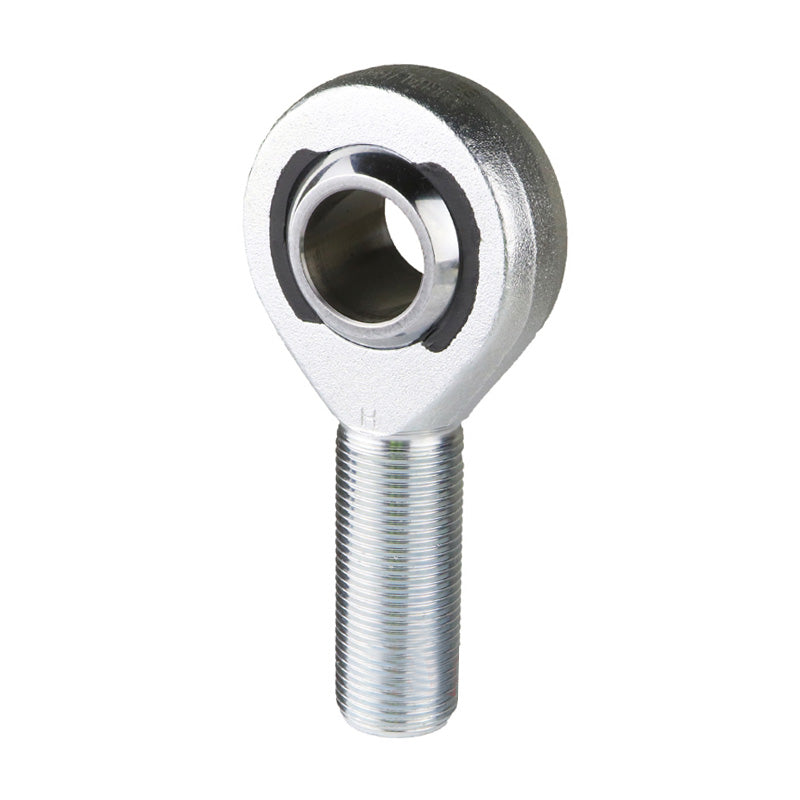

Durbal BEM10-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Male Rod End M10 Thread

Name: Durbal BEM10-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Male Rod End M10 Thread
Brand: Durbal
SKU: BEM10-20-502-DURB
Price: 52.59 USD
Availability: InStock

$52.59 ex VAT

Sale Sold out

In stock

Price Break

10+ $35.23

19+ $33.25

29+ $32.85

39+ $32.46

49+ $32.06

74+ $31.66

99+ $29.69

199+ $29.29

249+ $28.89

499+ $28.50

999+ $27.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M10
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 10mm
Material:: PTFE Lined

Technical

Thread Direction	-502 (Left)
d	10mm
G (Thread)	M10
B	14mm
C1	10.5mm
h1	48mm
d1	12.9mm
d2	28mm
dk	19mm
l1	29mm
l2	62mm
l7	15mm
tilt angle α	13.5 deg
weight	0.06kg
basic load rating dyn C	10.4 kN
basic load rating stat Co	24.9 kN
radial clearance CN	0-10 µm
