SKU: BEM12-60-501-DURB

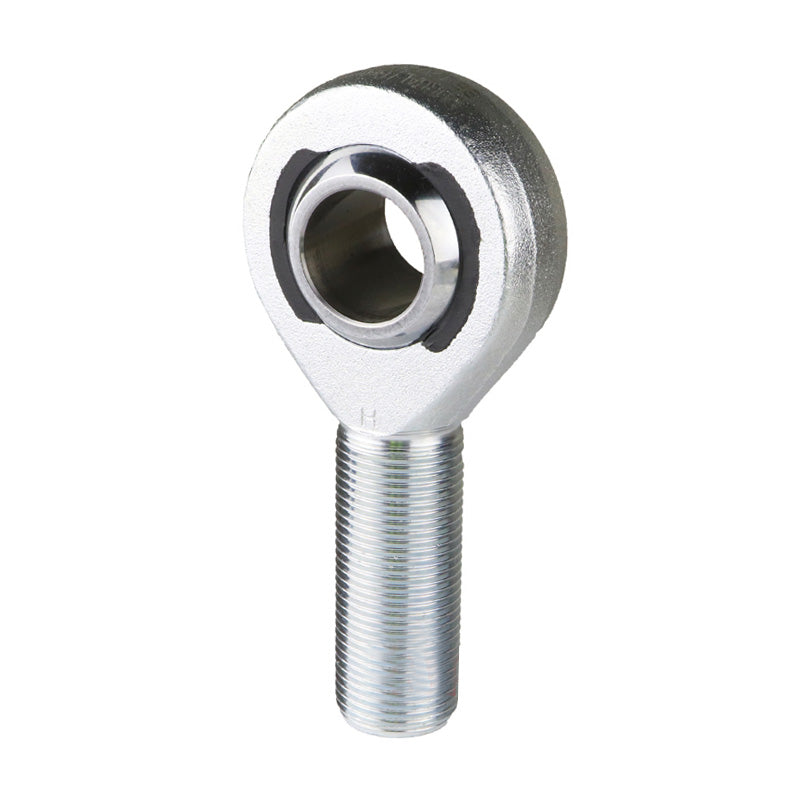

Durbal BEM12-60-501 Maintenance Free Right Hand Metric Stainless Steel / PTFE Lined Male Rod End M12 Thread

Name: Durbal BEM12-60-501 Maintenance Free Right Hand Metric Stainless Steel / PTFE Lined Male Rod End M12 Thread
Brand: Durbal
SKU: BEM12-60-501-DURB
Price: 91.91 USD
Availability: InStock

$91.91 ex VAT

Sale Sold out

Equivalent to: GAKSR12PS SRAKB12FG

Low stock

Price Break

10+ $61.56

19+ $58.10

29+ $57.41

39+ $56.72

49+ $56.03

74+ $55.34

99+ $51.88

199+ $51.19

249+ $50.49

499+ $49.80

999+ $48.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M12
Thread M / F:: Male
Thread Direction:: Right Hand
Inside Diameter:: 12mm
Material:: PTFE Lined

Technical

Thread Direction	-501 (Right)
d	12mm
G (Thread)	M12
B	16mm
C1	12mm
h1	54mm
d1	15.4mm
d2	32mm
dk	22.17mm
l1	33mm
l2	70mm
l7	19mm
tilt angle ?	13 deg
weight	0.092kg
basic load rating dyn C	12.4 kN
basic load rating stat Co	22.3 kN
radial clearance CN	0-10 µm
