SKU: BEM12-60-502-DURB

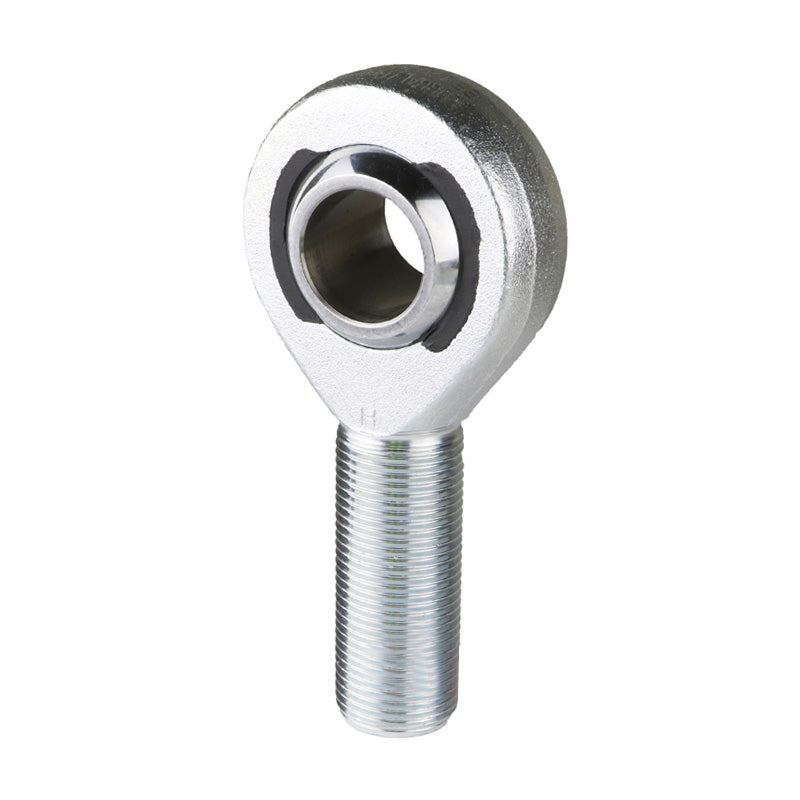

Durbal BEM12-60-502 Maintenance Free Left Hand Metric Stainless Steel / PTFE Lined Male Rod End M12 Thread

Name: Durbal BEM12-60-502 Maintenance Free Left Hand Metric Stainless Steel / PTFE Lined Male Rod End M12 Thread
Brand: Durbal
SKU: BEM12-60-502-DURB
Price: 55.41 USD
Availability: InStock

$55.41 ex VAT

Sale Sold out

In stock

Price Break

10+ $37.11

19+ $35.03

29+ $34.61

39+ $34.19

49+ $33.78

74+ $33.36

99+ $31.28

199+ $30.86

249+ $30.44

499+ $30.02

999+ $29.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M12
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 12mm
Material:: PTFE Lined

Technical

Thread Direction	-502 (Left)
d	12mm
G (Thread)	M12
B	16mm
C1	12mm
h1	54mm
d1	15.4mm
d2	32mm
dk	22.17mm
l1	33mm
l2	70mm
l7	19mm
tilt angle α	13 deg
weight	0.092kg
basic load rating dyn C	12.4 kN
basic load rating stat Co	22.3 kN
radial clearance CN	0-10 µm
