SKU: BEM14-20-501-DURB

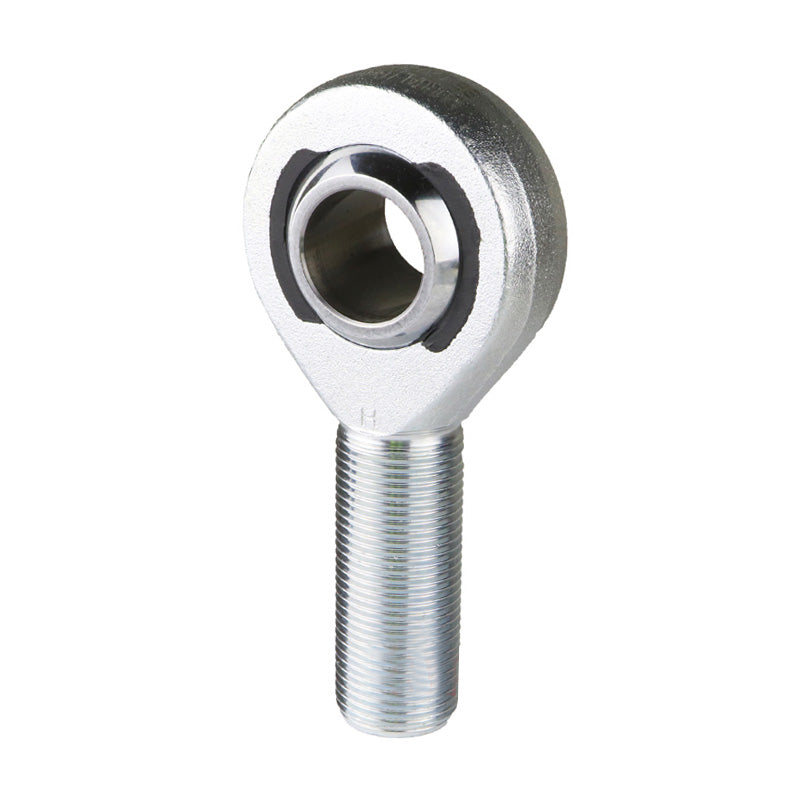

Durbal BEM14-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M14 Thread

Name: Durbal BEM14-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M14 Thread
Brand: Durbal
SKU: BEM14-20-501-DURB
Price: 50.13 USD
Availability: InStock

$50.13 ex VAT

Sale Sold out

Equivalent to: GAKR14PW SAKB14F

In stock

Price Break

10+ $33.58

19+ $31.69

29+ $31.32

39+ $30.94

49+ $30.56

74+ $30.18

99+ $28.30

199+ $27.92

249+ $27.54

499+ $27.17

999+ $26.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M14
Thread M / F:: Male
Thread Direction:: Right Hand
Inside Diameter:: 14mm
Material:: PTFE Lined

Technical

Thread Direction	-501 (Right)
d	14mm
G (Thread)	M14
B	19mm
C1	13.5mm
h1	60mm
d1	16.8mm
d2	36mm
dk	25.35mm
l1	36mm
l2	78mm
l7	20mm
tilt angle α	16 deg
weight	0.127kg
basic load rating dyn C	15.4 kN
basic load rating stat Co	45.4 kN
radial clearance CN	0-10 µm
