SKU: BEM16-20-501-DURB

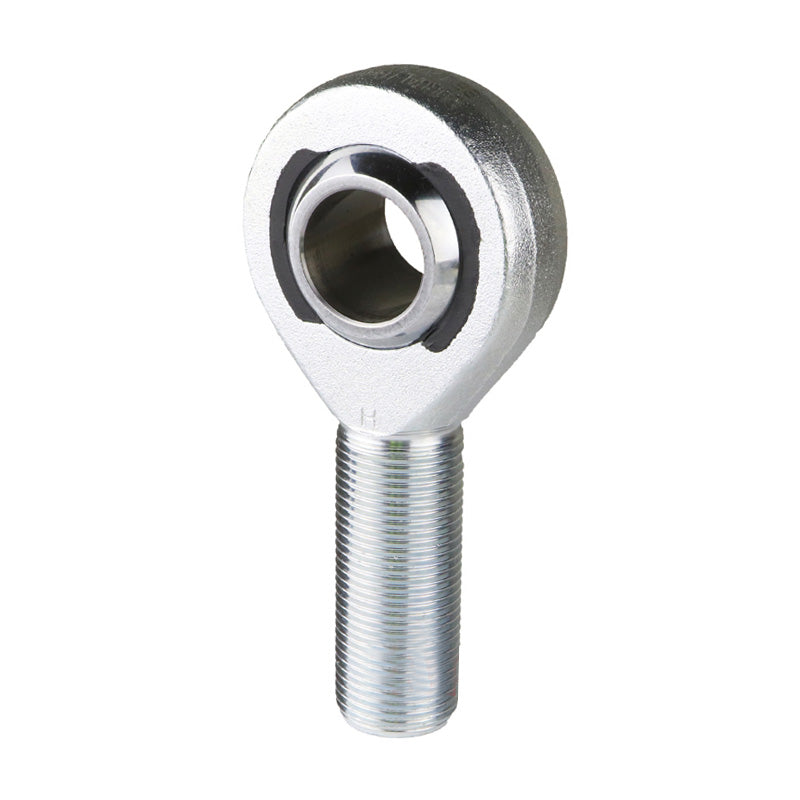

Durbal BEM16-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M16 Thread

Name: Durbal BEM16-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M16 Thread
Brand: Durbal
SKU: BEM16-20-501-DURB
Price: 75.79 USD
Availability: InStock

$75.79 ex VAT

Sale Sold out

Equivalent to: GAKR16PW SAKB16F

In stock

Price Break

10+ $50.77

19+ $47.91

29+ $47.34

39+ $46.77

49+ $46.20

74+ $45.63

99+ $42.78

199+ $42.21

249+ $41.64

499+ $41.07

999+ $39.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M16
Thread M / F:: Male
Thread Direction:: Right Hand
Inside Diameter:: 16mm
Material:: PTFE Lined

Technical

Thread Direction	-501 (Right)
d	16mm
G (Thread)	M16
B	21mm
C1	15mm
h1	66mm
d1	19.3mm
d2	42mm
dk	28.52mm
l1	40mm
l2	87mm
l7	22mm
tilt angle α	15.5 deg
weight	0.202kg
basic load rating dyn C	22.4 kN
basic load rating stat Co	56.6 kN
radial clearance CN	0-10 µm
