SKU: BEM16-20-502-DURB

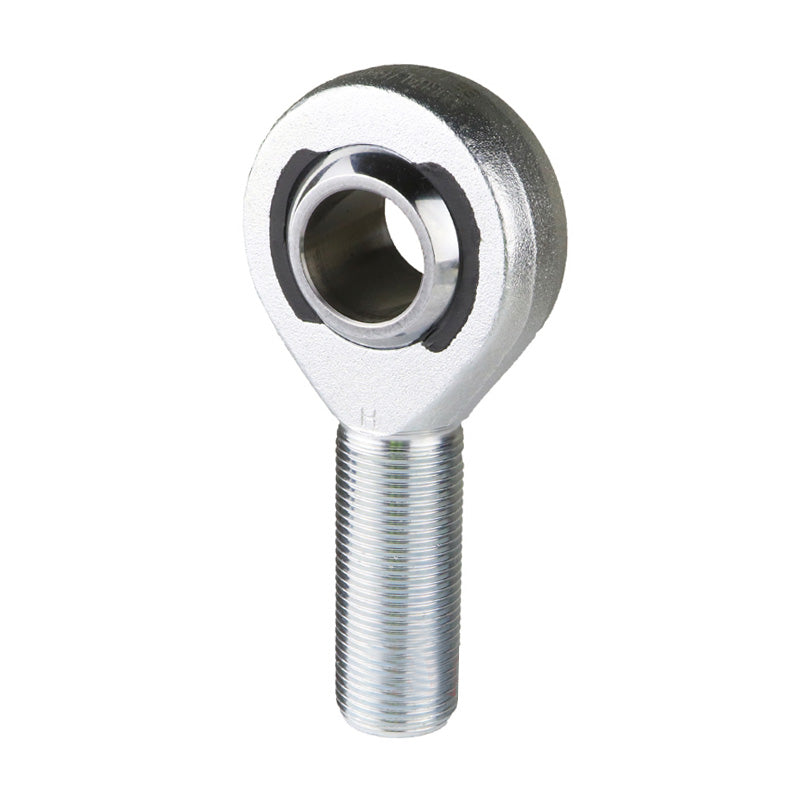

Durbal BEM16-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Male Rod End M16 Thread

Name: Durbal BEM16-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Male Rod End M16 Thread
Brand: Durbal
SKU: BEM16-20-502-DURB
Price: 91.31 USD
Availability: InStock

$91.31 ex VAT

Sale Sold out

In stock

Price Break

10+ $61.16

19+ $57.72

29+ $57.04

39+ $56.35

49+ $55.66

74+ $54.98

99+ $51.54

199+ $50.85

249+ $50.17

499+ $49.48

999+ $48.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M16
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 16mm
Material:: PTFE Lined

Technical

Thread Direction	-502 (Left)
d	16mm
G (Thread)	M16
B	21mm
C1	15mm
h1	66mm
d1	19.3mm
d2	42mm
dk	28.52mm
l1	40mm
l2	87mm
l7	22mm
tilt angle α	15.5 deg
weight	0.202kg
basic load rating dyn C	22.4 kN
basic load rating stat Co	56.6 kN
radial clearance CN	0-10 µm
