SKU: BEM20-20-501-DURB

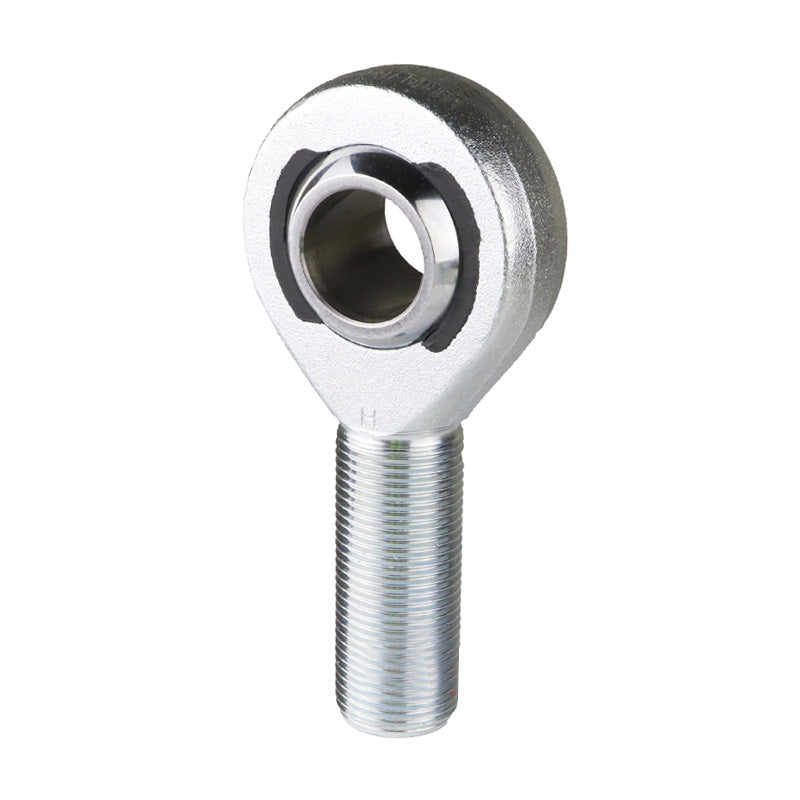

Durbal BEM20-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M20x1.5 Thread

Name: Durbal BEM20-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M20x1.5 Thread
Brand: Durbal
SKU: BEM20-20-501-DURB
Price: 93.15 USD
Availability: InStock

$93.15 ex VAT

Sale Sold out

Equivalent to: GAKR20PW SAKB20F

In stock

Price Break

10+ $62.40

19+ $58.89

29+ $58.19

39+ $57.49

49+ $56.79

74+ $56.09

99+ $52.58

199+ $51.88

249+ $51.18

499+ $50.48

999+ $49.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M20x1.5
Thread M / F:: Male
Thread Direction:: Right Hand
Inside Diameter:: 20mm
Material:: PTFE Lined

Technical

Thread Direction	-501 (Right)
d	20mm
G (Thread)	M20x1.5
B	25mm
C1	18mm
h1	78mm
d1	24.3mm
d2	50mm
dk	34.87mm
l1	47mm
l2	103mm
l7	28mm
tilt angle α	14.5 deg
weight	0.327kg
basic load rating dyn C	30.8 kN
basic load rating stat Co	82.2 kN
radial clearance CN	0-10 µm
