• Durbal BEMN08-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M8 Thread
  • Durbal
1 2

SKU: BEMN08-20-501-DURB

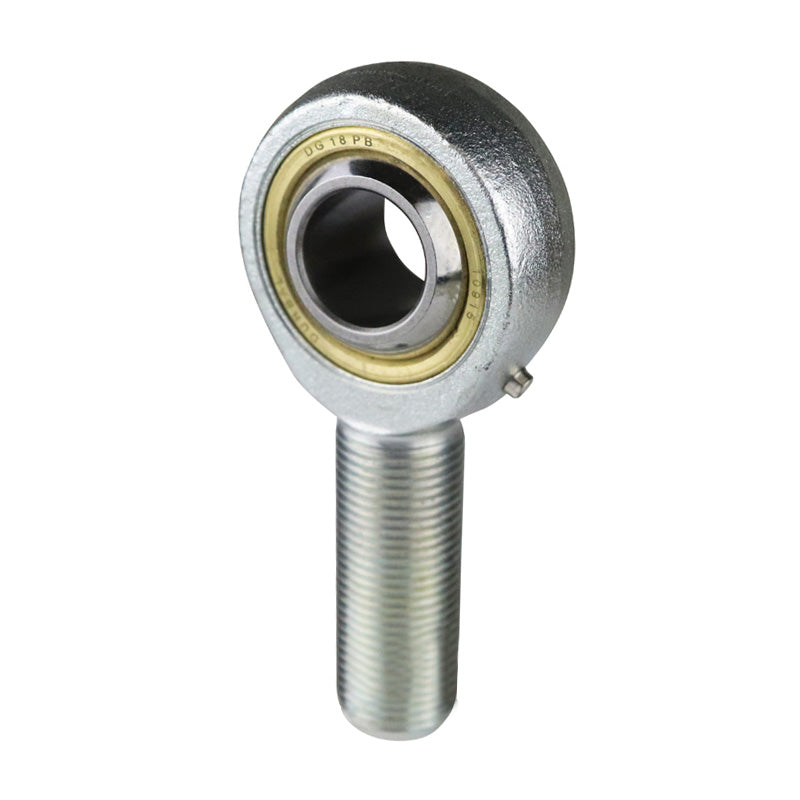

Durbal BEMN08-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M8 Thread

Durbal BEMN08-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M8 Thread
$90.91 ex VAT
$90.91 ex VAT
Sale Sold out

Equivalent to: GAKR8PB SAKAC8M

In stock

Price Break
10+ $60.89
19+ $57.47
29+ $56.79
39+ $56.10
49+ $55.42
74+ $54.74
99+ $51.32
199+ $50.63
249+ $49.95
499+ $49.26
999+ $47.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M8
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
8mm
Technical
Thread Direction -501 (Right)
d 8mm
G (Thread) M8mm
B 12mm
C1 9mm
h 42mm
d1 10.3mm
d2 24mm
dk 15.82mm
l1 25mm
l2 54mm
l7 15mm
tilt angle α 13 deg
weight 0.03kg
basic load rating dyn C 4.8 kN
basic load rating stat Co 11.9 kN
radial clearance CN 20-60 µm
