• Durbal BEMN10-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M10 Thread
  • Durbal
1 2

SKU: BEMN10-20-502-DURB

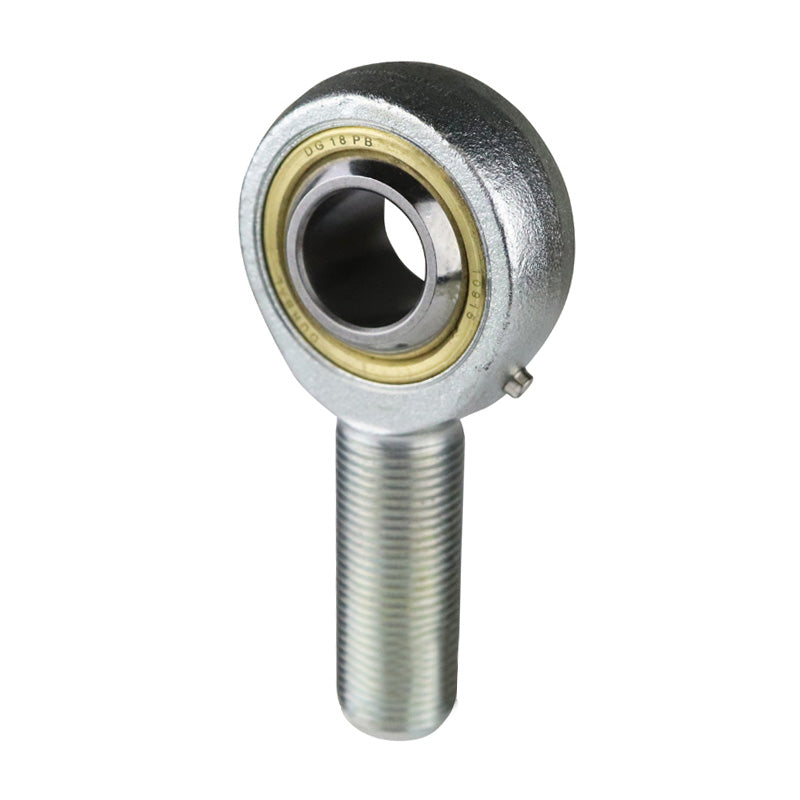

Durbal BEMN10-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M10 Thread

Durbal BEMN10-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M10 Thread
$32.25 ex VAT
$32.25 ex VAT
Sale Sold out

In stock

Price Break
10+ $21.60
19+ $20.39
29+ $20.14
39+ $19.90
49+ $19.66
74+ $19.42
99+ $18.20
199+ $17.96
249+ $17.72
499+ $17.47
999+ $16.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M10
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
10mm
Technical
Thread Direction -502 (Left)
d 10mm
G (Thread) M10mm
B 14mm
C1 10.5mm
h 48mm
d1 12.9mm
d2 28mm
dk 19mm
l1 29mm
l2 62mm
l7 15mm
tilt angle α 13 deg
weight 0.055kg
basic load rating dyn C 5.8 kN
basic load rating stat Co 14.5 kN
radial clearance CN 40-90 µm
