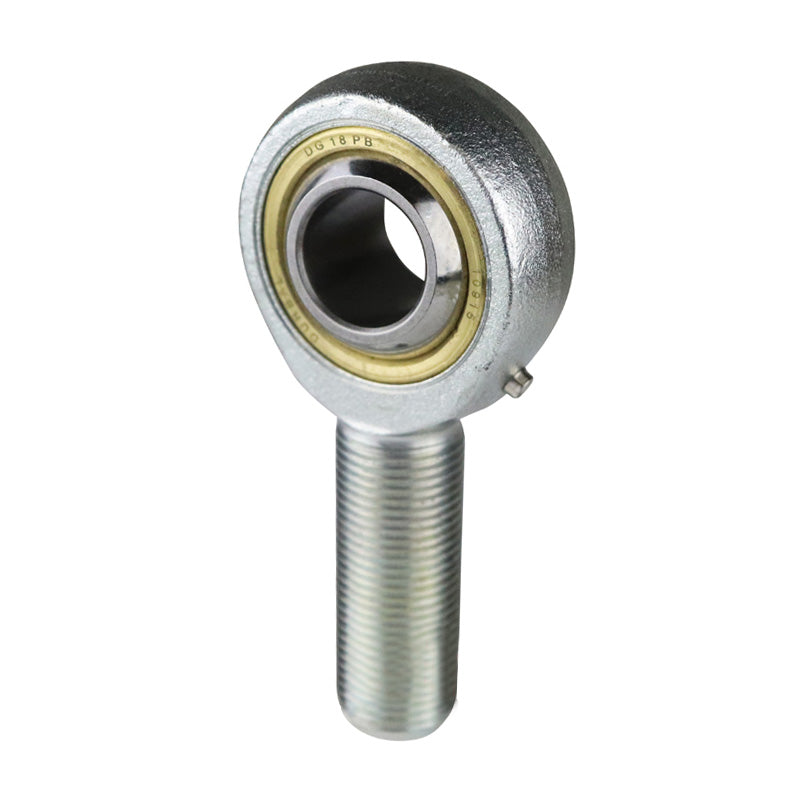

• Durbal BEMN12-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M12 Thread
  • Durbal
1 2

SKU: BEMN12-20-502-DURB

Durbal BEMN12-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M12 Thread

Durbal BEMN12-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M12 Thread
$38.11 ex VAT
$38.11 ex VAT
Sale Sold out

In stock

Price Break
10+ $25.53
19+ $24.09
29+ $23.80
39+ $23.52
49+ $23.23
74+ $22.94
99+ $21.51
199+ $21.22
249+ $20.94
499+ $20.65
999+ $20.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M12
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
12mm
Technical
Thread Direction -502 (Left)
d 12mm
G (Thread) M12mm
B 16mm
C1 12mm
h 54mm
d1 15.4mm
d2 32mm
dk 22.17mm
l1 33mm
l2 70mm
l7 19mm
tilt angle α 13 deg
weight 0.085kg
basic load rating dyn C 7 kN
basic load rating stat Co 17.5 kN
radial clearance CN 40-90 µm
