• Durbal BEMN16-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M16 Thread
  • Durbal
1 2

SKU: BEMN16-20-502-DURB

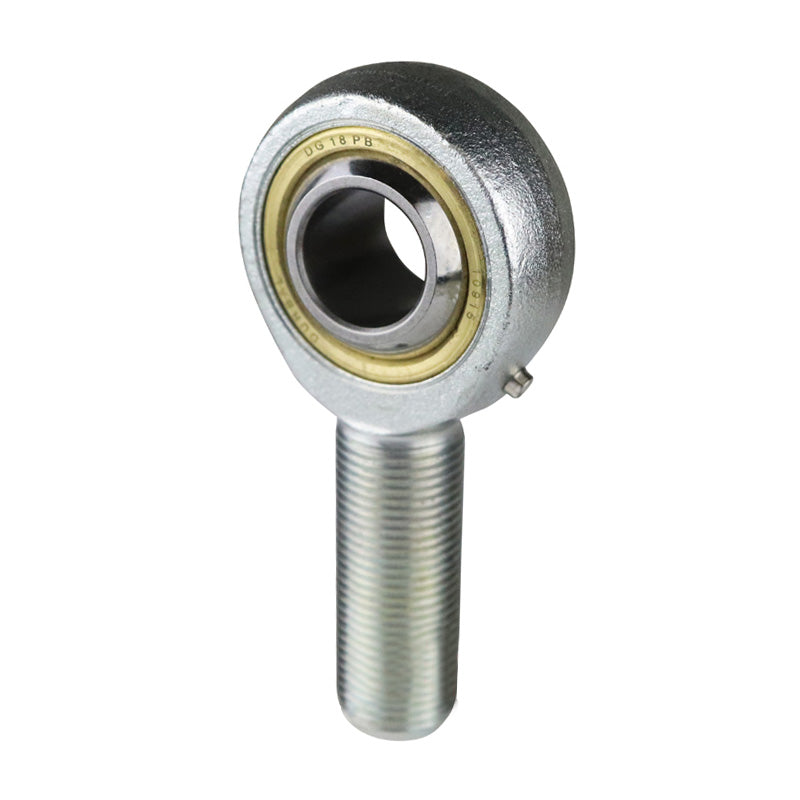

Durbal BEMN16-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M16 Thread

Durbal BEMN16-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M16 Thread
$55.41 ex VAT
$55.41 ex VAT
Sale Sold out

In stock

Price Break
10+ $37.11
19+ $35.03
29+ $34.61
39+ $34.19
49+ $33.78
74+ $33.36
99+ $31.28
199+ $30.86
249+ $30.44
499+ $30.02
999+ $29.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M16
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
16mm
Technical
Thread Direction -502 (Left)
d 16mm
G (Thread) M16mm
B 21mm
C1 15mm
h 66mm
d1 19.3mm
d2 42mm
dk 28.52mm
l1 40mm
l2 87mm
l7 22mm
tilt angle α 15 deg
weight 0.21kg
basic load rating dyn C 11.4 kN
basic load rating stat Co 28.5 kN
radial clearance CN 50-110 µm
