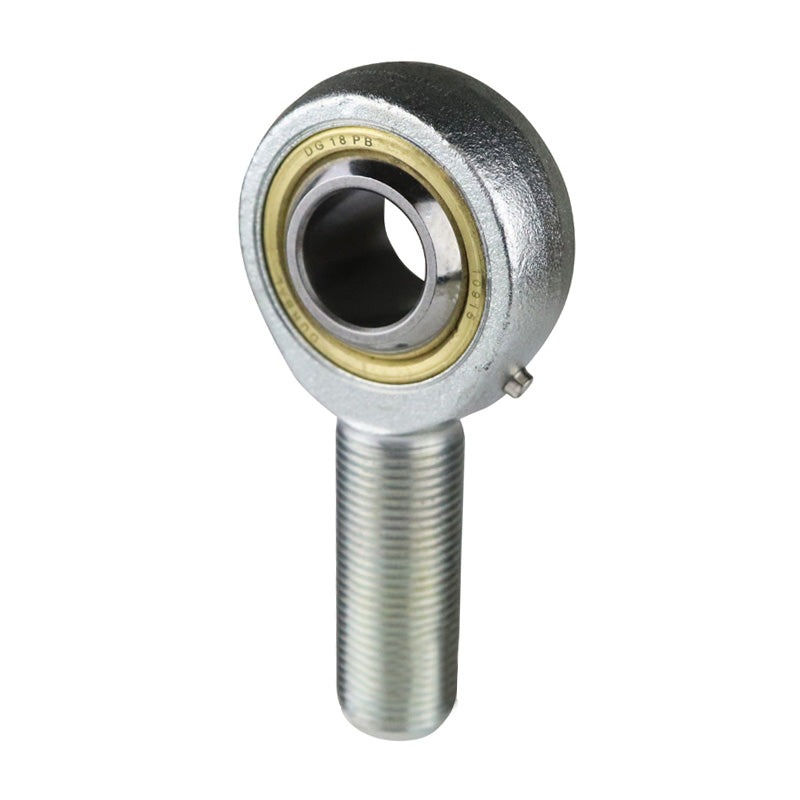

• Durbal BEMN18-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M18x1.5 Thread
  • Durbal
1 2

SKU: BEMN18-20-501-DURB

Durbal BEMN18-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M18x1.5 Thread

Durbal BEMN18-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M18x1.5 Thread
$71.23 ex VAT
$71.23 ex VAT
Sale Sold out

Equivalent to: GAKR18PB SAKAC18M

In stock

Price Break
10+ $47.71
19+ $45.03
29+ $44.50
39+ $43.96
49+ $43.42
74+ $42.89
99+ $40.21
199+ $39.67
249+ $39.14
499+ $38.60
999+ $37.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M18x1.5
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
18mm
Technical
Thread Direction -501 (Right)
d 18mm
G (Thread) M18x1.5mm
B 23mm
C1 16.5mm
h 72mm
d1 21.8mm
d2 46mm
dk 31.7mm
l1 44mm
l2 95mm
l7 25mm
tilt angle α 15 deg
weight 0.28kg
basic load rating dyn C 17.6 kN
basic load rating stat Co 44 kN
radial clearance CN 50-110 µm
