SKU: BEMN20-20-501-DURB

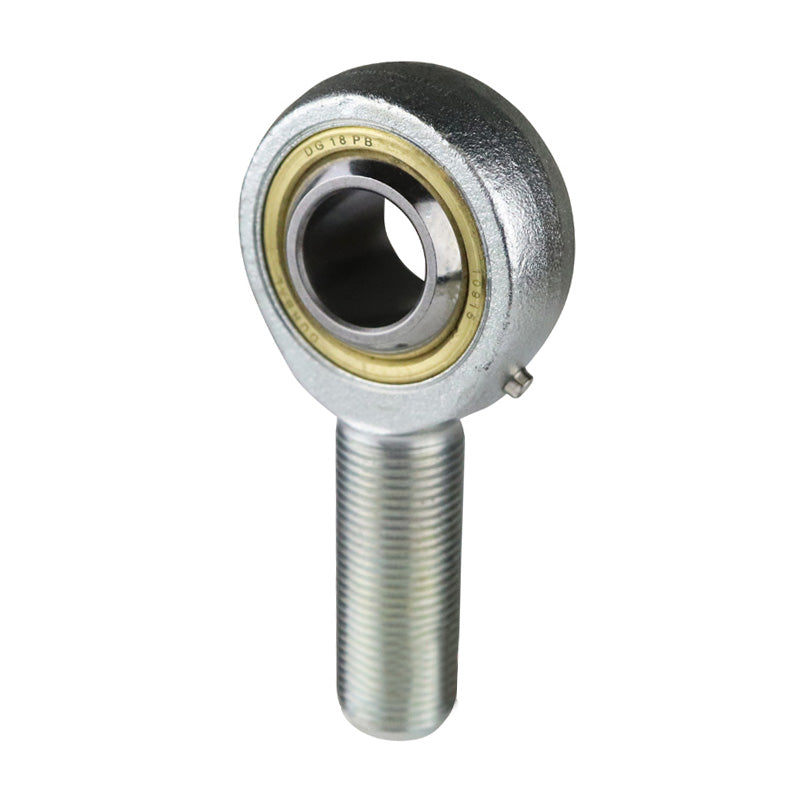

Durbal BEMN20-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M20x1.5 Thread

Name: Durbal BEMN20-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M20x1.5 Thread
Brand: Durbal
SKU: BEMN20-20-501-DURB
Price: 76.51 USD
Availability: InStock

$76.51 ex VAT

Sale Sold out

Equivalent to: GAKR20PB SAKAC20M

In stock

Price Break

10+ $51.25

19+ $48.37

29+ $47.79

39+ $47.22

49+ $46.64

74+ $46.06

99+ $43.19

199+ $42.61

249+ $42.03

499+ $41.46

999+ $40.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M20x1.5
Thread M / F:: Male
Thread Direction:: Right Hand
Inside Diameter:: 20mm

Technical

Thread Direction	-501 (Right)
d	20mm
G (Thread)	M20x1.5mm
B	25mm
C1	18mm
h	78mm
d1	24.3mm
d2	50mm
dk	34.87mm
l1	47mm
l2	103mm
l7	28mm
tilt angle α	15 deg
weight	0.38kg
basic load rating dyn C	20 kN
basic load rating stat Co	50 kN
radial clearance CN	50-110 µm
