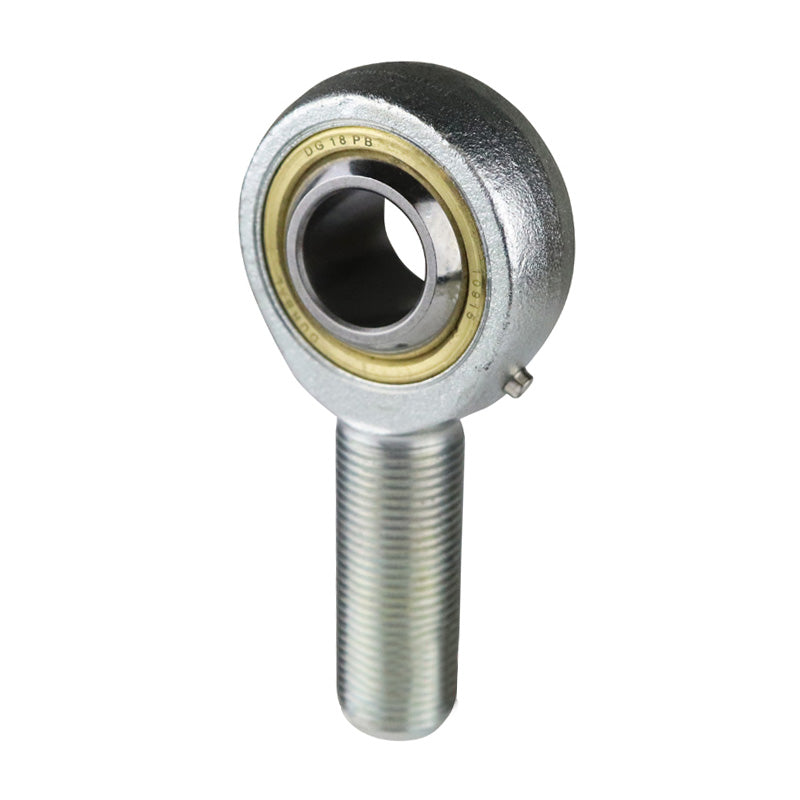

• Durbal BEMN20-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M20x1.5 Thread
  • Durbal
1 2

SKU: BEMN20-20-502-DURB

Durbal BEMN20-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M20x1.5 Thread

Durbal BEMN20-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M20x1.5 Thread
$76.51 ex VAT
$76.51 ex VAT
Sale Sold out

In stock

Price Break
10+ $51.25
19+ $48.37
29+ $47.79
39+ $47.22
49+ $46.64
74+ $46.06
99+ $43.19
199+ $42.61
249+ $42.03
499+ $41.46
999+ $40.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M20x1.5
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
20mm
Technical
Thread Direction -502 (Left)
d 20mm
G (Thread) M20x1.5mm
B 25mm
C1 18mm
h 78mm
d1 24.3mm
d2 50mm
dk 34.87mm
l1 47mm
l2 103mm
l7 28mm
tilt angle α 15 deg
weight 0.38kg
basic load rating dyn C 20 kN
basic load rating stat Co 50 kN
radial clearance CN 50-110 µm
